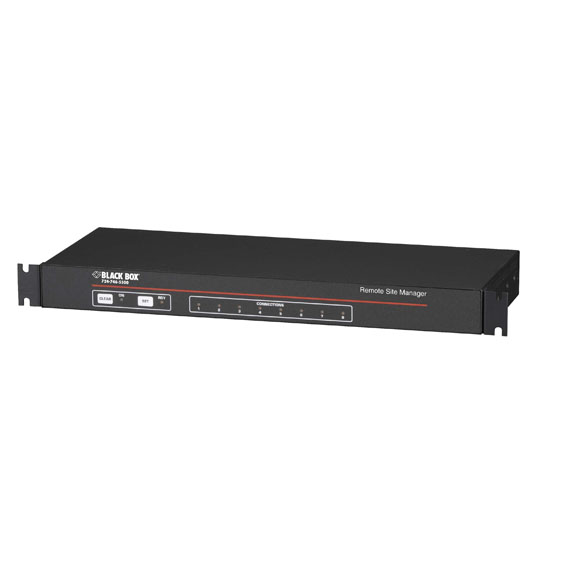

Secure Site Manager, 8-Port

Secure access to your network equipment's serial console ports from anywhere!

SW551A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Manage your routers or servers remotely.
  • Provides in-band and out-of-band access to DB9 RS-232 serial console ports and maintenance ports on UNIX® servers, routers, and any other network equipment that has a serial console port.
  • Share multiple console ports via a single VT100™ terminal or a PC.
  • Access serial ports over the network via SSH connections and simple menu-driven commands, or through a discrete TCP port connection to one of the unit's serial outputs.


  • Description

    Secure Site Manager, 8-Port


    Quick Facts

  • Manage your routers or servers remotely.
  • Provides in-band and out-of-band access to DB9 RS-232 serial console ports and maintenance ports on UNIX® servers, routers, and any other network equipment that has a serial console port.
  • Share multiple console ports via a single VT100™ terminal or a PC.
  • Access serial ports over the network via SSH connections and simple menu-driven commands, or through a discrete TCP port connection to one of the unit's serial outputs.

  • Further Details

  • Includes a built-in V.92 modem and a 10BASE-T/100BASE-TX port.
  • Features two command interfaces: a Web browser and a command-driven text interface.
  • Full matrix capability enables you to connect any two ports, even if they have different communications settings.
  • Send buffered console messages via SYSLOG. Each port has 256 KB of buffering.
  • A buffer mode enables individual ports to store parameters and capture data.
  • Alert via SNMP when incoming console messages are captured.
  • Secure! Features SSHv2 encryption, RADIUS authentication, and HTTPS/SSL.
  • Provides two levels of security: one for the supervisor and one for the user.
  • Flash-upgradable firmware.

  • Technical Specifications for Secure Site Manager, 8-Port:

    Coding 7/8 bits; Even/Odd/No Parity; 1, 2 stop bits
    Compliance UL®, cUL, FCC Class A
    Data Rate Up to 115.2 kbps
    Flow Control X-ON/X-OFF, RTS/CTS, Both, None
    Memory 256 KB per port; stores parameters and captured data
    Modem Internal, 56K, V.92
    Timeout No Activity disconnects: none or 1, 5, 15, 30, or 90 minutes
    CE Approval Yes
    RoHS Yes
    Connectors 10BASE-T/100BASE-TX: (1) RJ-45;
    RS-232: (8) DB9 M
    Indicators LEDs: Power ON, Ready, (8) Data connection
    Power 100-240 VAC, 50-60 Hz, 5 watts
    Size 1.75"H (1U) x 19"W x 6.5"D (4.4 x 48.3 x 16.5 cm)
    Weight Shipping: 6 lb. (2.7 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
