Testers & Tools > Testers

click photo to enlarge

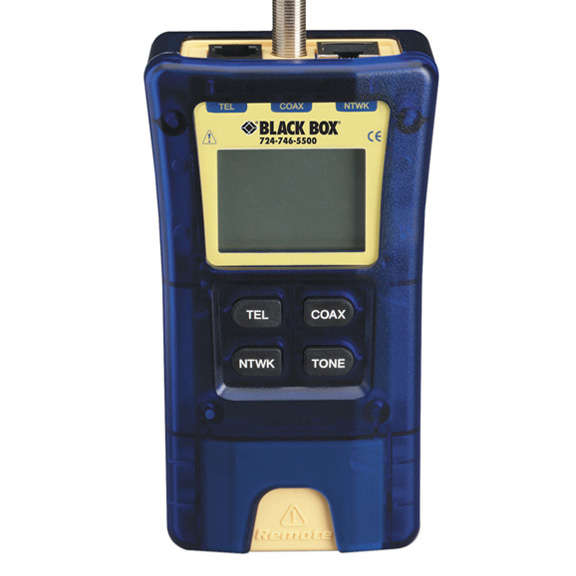

TS590A

Photo may show similar product

Other views

SOHO Tester

All you need to test your small office or home wiring systems.

TS590A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Handheld unit reliably tests 8-wire network cables, 6-wire telephone lines, coax cables, and more.
  • Get clear pass/fail results on the large seven-segment LCD.
  • Built-in tone generator for use with tone tracers.
  • Test results are displayed in wire-map format.

  • Description

    SOHO Tester


    Quick Facts

  • Handheld unit reliably tests 8-wire network cables, 6-wire telephone lines, coax cables, and more.
  • Get clear pass/fail results on the large seven-segment LCD.
  • Built-in tone generator for use with tone tracers.
  • Test results are displayed in wire-map format.

  • Further Details

    Test for shorts, opens, miswires, reversals, and split pairs in any of its three test modes (telephone, coax, and network).

    Here’s the all-in-one tester for servicing home and small offices with a mix of copper and coax cabling. Designed exclusively for low-voltage types of cable commonly used for home networking and home automation, the SOHO Tester identifies and verifies cable TV, telephone, audio, and 8-wire network cabling at the touch of a button.

    Upon completion of a telephone or network test, the SOHO Tester displays the wiremap and any faults associated with the various cable types on its easy-to-read LCD.

    If there’s a miswire detected between local and remote units, the LCD shows which pin the fault is on, along with a “fail” icon. When the “pass” icon appears, you know it’s a good test.

    The tester also has a Tone mode that generates audio tones for use with tone traces on all pairs, a selected pair, or a selected pin.

    The SOHO Tester is comprised of a main local unit with a shielded RJ-45 connector and coax F and RJ-12 connectors plus a remote unit with a shielded RJ-45 connector and an RJ-12 connector. For convenient transport, the remote unit attaches to the bottom of the main unit.

    You can also order extra Coax Remote Identifiers as well as RJ-45 or RJ-11 Wire Mappers for identifying and mapping multiple points of termination (see "Related Products").

    The tester’s Auto-Off feature keeps power consumption low and preserves battery life by shutting down the unit automatically during periods of inactivity.

    Product includes:
  • (1) tester
  • (1) Wiremap remote
  • (1) Coax Remote Identifier
  • (1) 12" RJ-45-to-alligator clip cable
  • (1) 7.5" cable with RJ-12 connectors for RJ-45 or RJ-11 jacks
  • (1) user’s manual.

  • This product works with:
  • SOHO Tester Coax Remote Identifiers
  • SOHO Tester Wire Mappers
  • Questions? Contact our FREE Tech Support.


    Technical Specifications for SOHO Tester:

    This product works with:
  • SOHO Tester Coax Remote Identifiers
  • SOHO Tester Wire Mappers
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for SOHO Tester:

    Product Data Sheets


    Connect your SOHO Tester with:

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A One year warranty is included.

    Extended Two years for one Warranty Available


    Protect your purchase with an additional Two years for oneDouble Diamond™ warranty!
    Cost: $11.10

    Extended Three years for two Warranty Available


    Protect your purchase with an additional Three years for twoDouble Diamond™ warranty!
    Cost: $22.19
