SOHOTEST-KIT

Photo may show similar product

Other views

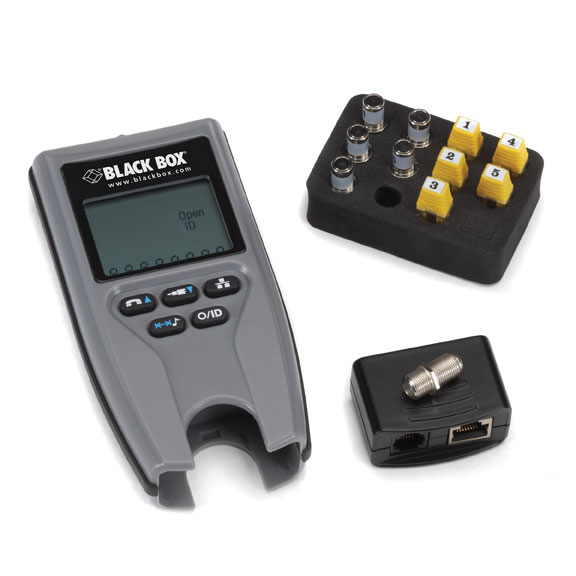

SOHO Plus Tester Kit

Includes SOHO Plus Tester and ten RJ-45 modules.

SOHOTEST-KIT

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Use to test, identify, and detect potential faults in voice, video, and data cables.
  • Has the added feature of length measurement, allowing users to measure the length of a cable as a whole or by individual wire pairs located within a cable.
  • Continuity testing discerns if the voice, data, and/or video cables being tested have been wired correctly with no faults.
  • ID Mapping identifies cables and determines their exact location. Map up to 19 locations at one time.


  • Description

    SOHO Plus Tester Kit


    Quick Facts

  • Use to test, identify, and detect potential faults in voice, video, and data cables.
  • Has the added feature of length measurement, allowing users to measure the length of a cable as a whole or by individual wire pairs located within a cable.
  • Continuity testing discerns if the voice, data, and/or video cables being tested have been wired correctly with no faults.
  • ID Mapping identifies cables and determines their exact location. Map up to 19 locations at one time.

  • Further Details

  • Tone Mode verifies cable wiring paths by sound.
  • Length Measurement determines the length (in feet or meters) of an entire cable and/or individual wire pairs within the cable.
  • Tests voice (6-wire), data (8-wire), and video (coax).
  • Easy to read, extra-large 7-segment LCD screen with large icons clearly displays test results.
  • Tone generation over voice, data, and video cables, with four different tones.
  • RJ (Voice and Data) test remote stores in bottom of case. A video ID remote is also included.
  • Tests and indicates pins with shorts, opens, reversals, miswires, and split pairs.
  • Displays "Pass" icon for correctly wired T568A/B.
  • Displays "X-over" for correctly wired cross-over (uplink) data cables and displays "Rev" for correctly wired reverse-pinned voice cable.
  • Low power consumption for long battery life.
  • Auto power-off.
  • Cable test results displayed in wire map format with connector pin numbers.
  • Conserves power and supports long battery life with Auto-off feature and battery low icon.
  • Video and data cables can be connected to the tester at the same time to improve testing efficiency.
  • Patch cables may be tested without detaching the remote from the main tester.


  • What's included:
    • (1) SOHO Plus test unit • (1) master remote • (19) RJ-45 remotes • (1) set of coax remotes (1–5) • (1) F-connector coupler • (1) RJ-45 to alligator clip cable assembly


    Technical Specifications for SOHO Plus Tester Kit:

    Cable Types CAT7, CAT6x, CAT5e, CAT5, CAT4, CAT3 shielded or unshielded, coax
    CE Approval Yes
    Default Length Constants Restored with power on reset:
    Voice: 17.4 pF/ft.;
    Video: 16.5 pF/ft.;
    Data: 15 pF/ft.
    Length Accuracy without Length Constant Accuracy ±3% plus ±1 foot (30.4 cm)
    Maximum Coax Cable Length 100 ohms maximum DC resistance, center conductor plus shield
    Maximum RJ Cable Length 1000 ft. (305 m)
    Maximum Voltage* RJ jack: 66 VDC or 55 VAC;
    F-connector: 50 VDC or VAC
    * Parameters refer to the maximum voltage that can be applied to any two connector pins without causing damage to the tester.
    Minimum Cable Length for Split Pair Detection 1.5 ft. (0.5 m)
    Measurement Technology Capacitance testing
    User Controls Keypad: (5) Buttons
    Connectors (1) RJ-11 jack, (1) F-connector, (1) RJ-45 jack;
    Remote Tester: (1) RJ-11 jack, (1) RJ-45 jack
    Indicators LCD display screen; low battery icon flashes when battery voltage falls below 6V
    Temperature Tolerance Operating: 32 to 122° F (0 to 50° C);
    Storage: -4 to +140° F (-20 to +60° C)
    Humidity Tolerance 10 to 90%, noncondensing
    Power (1) 9-V alkaline battery: Active: 425 hours;
    Standby: 4 years
    Size 6.4"H x 2.8"W x 1.4"D (16.3 x 7.1 x 3.6 cm)
    Weight 9 oz. (256 g) with battery and remote-end of tester


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
