Cabinets & Racks > Full Size IT Cabinets

click photo to enlarge

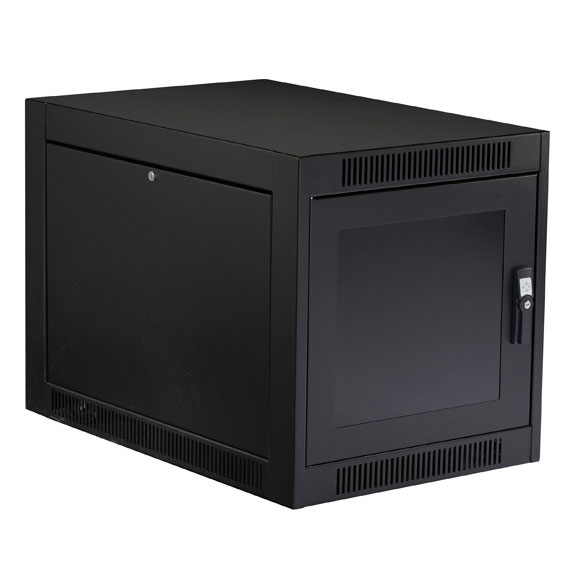

RM145A-R2

Photo may show similar product

Other views

SOHO Cabinet, 26"H x 24"W x 35.4"D

This compact cabinet offers big features for the small office or home office.

RM145A-R2


Lifetime Warranty

Product Highlights

  • Only 26" high, this cabinet designed to fit under a standard-height modular desktop.
  • Ideal for housing LAN, WAN, phone, and voice mail equipment.
  • Casters (included) provide mobility for easy equipment access.
  • Provides 11U of rack space.
  • Guaranteed for life!

  • Description

    SOHO Cabinet, 26"H x 24"W x 35.4"D


    Quick Facts

  • Only 26" high, this cabinet designed to fit under a standard-height modular desktop.
  • Ideal for housing LAN, WAN, phone, and voice mail equipment.
  • Casters (included) provide mobility for easy equipment access.
  • Provides 11U of rack space.
  • Guaranteed for life!

  • Further Details

  • Holds up to 400 pounds.
  • Constructed of a welded steel frame with four rack angle mounting struts.
  • Meets EIA industry standards.
  • Front panel and rear door feature keylocks.
  • Doors and side panels are inset flush with the frame.
  • Textured, low-gloss, black powder paint finish.
  • Run cables through a 7"W x 1"H opening on the bottom rear of the cabinet.
  • Open base provides air circulation and hides the included casters. Cold air is drawn from the floor and through the fan cutouts on the rear door.
  • Front door hinges left and is removable and reversible.
  • Front door features a clear plexi window and a locking handle. The same key fits all doors.
  • Include two sets of L-shaped rack angles with EIA spacing.
  • Features rails with M6 square holes.
  • You can add an optional panel with two 4-inch fans and finger guards to the rear door to provide additional heat dissipation.
  • Also available in a 23.6" (60 cm) depth (RM140A-R2).

  • What’s included:
  • Cabinet
  • Casters
  • (2) sets of L-shaped rack angles with EIA spacing and square M6 holes
  • (30) cage nuts and screws
  • (2) sets of keys


  • This product works with:
  • SOHO Cabinet Fan Assembly (RM141).
  • Questions? Contact our FREE Tech Support.


    Technical Specifications for SOHO Cabinet, 26"H x 24"W x 35.4"D:

    Outside Height — 26.21" (66.57 cm)
    Door Width — 21.45" (54.48 cm)
    Rack Units — 11U
    Outside Width — 24" (60 cm)
    Outside Depth — 35.4" (90 cm)
    Weight — 95 lb. (43 kg)
    This product works with:
  • SOHO Cabinet Fan Assembly (RM141).
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for SOHO Cabinet, 26"H x 24"W x 35.4"D:

    Manuals

    • SOHO (small office/home office) Cabinet
      (Version 4)

    Product Data Sheets

    Black Box Explains


    Connect your SOHO Cabinet, 26"H x 24"W x 35.4"D with:

    Accessory: FT9545A

    Hook and Loop Bundle Wrap, 5/8" (1.5-cm) Wide, Black, 15-ft. (4.5-m)
