Networking > Extenders

click photo to enlarge

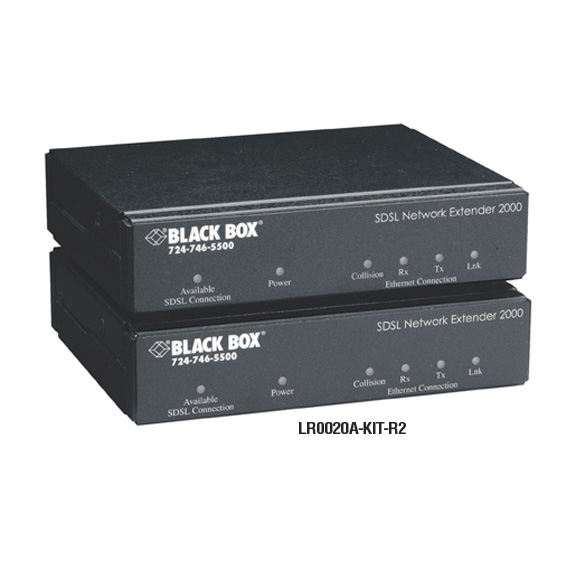

LR0020A-KIT-R2

Photo may show similar product

Other views

SDSL Network Extender 2000 Kit

A simple option for expanding your corporate or service-provider LANs!

LR0020A-KIT-R2

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Use any unshielded twisted-pair cable to link your Ethernet network across long distances.

  • Description

    SDSL Network Extender 2000 Kit


    Quick Facts

  • Use any unshielded twisted-pair cable to link your Ethernet network across long distances.

  • Further Details

  • Provides speeds up to 2.3 Mbps and distances up to 2.27 miles (3.65 km) over 1-pair UTP!
  • Provides seamless DSL-to-Ethernet media conversion and bridging.
  • IP network service providers: Give your customers multiple service offerings and the opportunity to add bandwidth incrementally as they need it!
  • Plug-and-play installation.
  • Switch-selectable data rates for high-speed, short-range or lower-speed, longer-range operation.
  • Includes (1) Single-Port Provider Unit and (1) Single-Port Subscriber Unit.

    The SDSL Network Extender 2000 Kit provides affordable, high-speed LAN connections and Internet access over any grade of UTP cable—CAT5, CAT3, even CAT2.

    It's ideal for use in situations where the local network and the gateway to the ISP aren’t close enough to be directly attached to each other, such as in campus applications. It enables you to establish both DSL and Ethernet links on each side of your single copper pair and essentially provide a very long Ethernet connection.

    For top speed, the SDSL Network Extender 2000 Kit supports up to a blazing 2.3 Mbps, depending on the range you select.

    This plug-and-play extender requires little configuration. Just plug in the SDSL lines and make the Ethernet connections. For maximum distances, you may have to adjust the DIP switches to select the range and speed.

    And because the extender can perform symmetrical data transfer, it's well-suited for applications in which two network segments must be able to send and receive data at equally fast rates.

  • Technical Specifications for SDSL Network Extender 2000 Kit:

    Bandwidth — Selectable 2.3 Mbps, 784 kbps, 528 kbps, 272 kbp (symmetrical)
    Distance (Maximum) — Over 24 AWG: 2.3 Mbps: 12,000 ft. (3657.6 m);
    784 kbps: 15,000 ft. (4572 m);
    528 kbps: 18,000 ft. (5486.4 m);
    272 kbps: 20,000 ft. (6096 m)
    Interface — Network: IEEE 802.3 Ethernet 10BASE-T;
    DSL: RJ-45 2-wire TC-PAM encoding
    Connectors — (2) RJ-45 ([1] Network, [1] SDSL)
    Indicators — (6) LEDs: SDSL Connection, Collision, Rx, Tx, Lnk, Power
    Power — 100–125 VAC, 60 Hz, external wallmount; 230-VAC version on request
    NOTE: The extender is configured as an MDI-X (hub). You may need a crossover cable (EVCRB85-0010) on one or both sides, depending on your network configuration.

    This product works with:
    • GigaBase® 350 CAT5e Patch Cable, Snagless Boots, Straight-Pinned and Cross-Pinned (EVNSL80, etc. and EVCRB80, etc.)
    Questions? Contact our FREE Tech Support.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for SDSL Network Extender 2000 Kit:

    Manuals

    • SDSL Network Extender 2000
      Installation and User Guide (11/2/2012)

    Product Data Sheets


    Connect your SDSL Network Extender 2000 Kit with:

    Accessory: EVNSL85-0010

    GigaBase 350 CAT5e Patch Cable, Snagless Boots, Beige, 10-ft. (3.0-m)

    GigaBase 350 CAT5e Patch Cable, Snagless Boots, Beige, 10-ft. (3.0-m)

    Accessory: EVCRB82-0001

    GigaBase 350 CAT5e Patch Cable (UTP), Snagless Boots, Crossover, 1-ft. (0.3-m), Green

    GigaBase 350 CAT5e Patch Cable (UTP), Snagless Boots, Crossover, 1-ft. (0.3-m), Green
