Cables > Fiber - Multimode

click photo to enlarge

EXN4031

Photo may show similar product

Other views

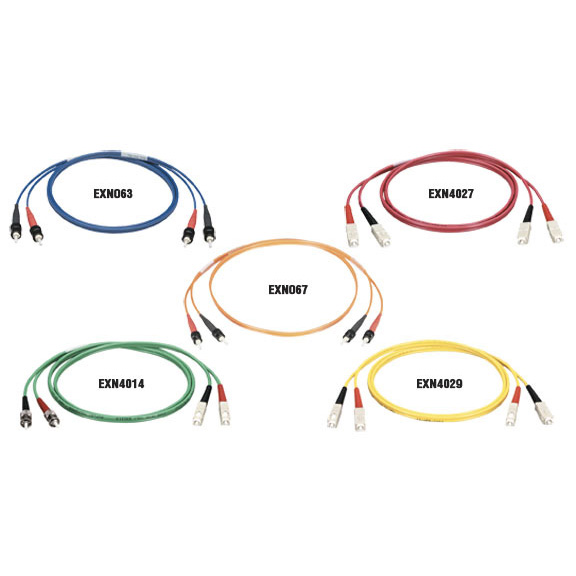

SC-SC, Multimode, 62.5-Micron, Multicolored Fiber Optic Patch Cables, Custom Lengths

Add some color to your networking world with these fiber patch cables!

EXN4031


Lifetime Warranty

Product Highlights

  • Feature a 62.5/125-micron, all-ceramic construction.
  • High-performance, tight-buffer coating provides environmental and mechanical protection.
  • Guaranteed for life!

  • Description

    Multimode, 62.5-Micron, Multicolored Fiber Optic Patch Cables, Orange, SC-SC, Custom Lengths


    Quick Facts

  • Feature a 62.5/125-micron, all-ceramic construction.
  • High-performance, tight-buffer coating provides environmental and mechanical protection.
  • Guaranteed for life!

  • Further Details

  • Identify fiber connections in patching systems.
  • Duplex, riser cables are ideal for general indoor use.
  • Compatible with all standard fiber optic equipment and connectors.
  • Ferrule body design constructed of a zirconia/metal alloy.

    Color coordinate your fiber cable runs. Our cable comes in five colors. Use a different color for every department. Or choose the colors based on the types of connections you’re making.

    This cable is resilient and flexible enough for general, indoor use. It’s ideal for jumper, patch cord, and pigtail applications. Make routing connections in your patching systems. Connect your main fiber cable to your network equipment. This cable does it all!

    You get reliable performance, too. A tight-buffer coating on each optical fiber protects it against environmental and mechanical hazards.

    The cable meets all appropriate fiber standards and is UL® Listed.

  • Technical Specifications for SC-SC, Multimode, 62.5-Micron, Multicolored Fiber Optic Patch Cables, Custom Lengths:


    Attenuation — 3 dB/km at 850 nm; 1 dB/km at 1300 nm
    Bandwidth — 200 MHz/km at 850 nm; 500 MHz at 1300 nm
    Bend Radius (Minimum) — Complies with ANSI/TIA/EIA–568B.3 standard
    Cable Size — 0.12“ x 0.24“ (3 x 6.1 mm)
    Cladding Diameter — 125 µm
    Core Diameter — 62.5 µm
    Ferrule — Zirconia/metal alloy
    Fiber Type — Multimode (graded index)
    Operating Temperature — -40 to +185° F (-40 to +85° C)
    Standards — UL® Listed; ANSI X3T9.5 PMD; 155-Mbps ATM; 100-Mbps FDDI, Fibre Channel FC-PH; GR-409-CORE; ICEA-83-596; TIA/EIA-568, 598-A, and 758


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for SC-SC, Multimode, 62.5-Micron, Multicolored Fiber Optic Patch Cables, Custom Lengths:


    Connect your SC-SC, Multimode, 62.5-Micron, Multicolored Fiber Optic Patch Cables, Custom Lengths with:
