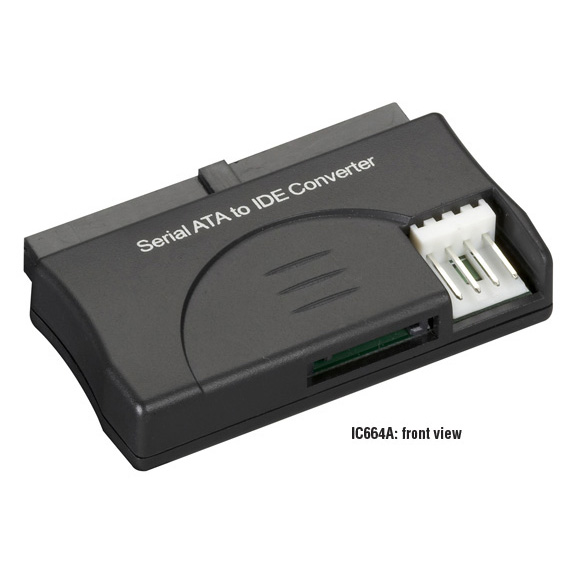

SATA to IDE Converter

Connect an IDE hard drive to your computer's ATA PCI card.

IC664A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Supports Ultra DMA (UDMA) data transfer rates up to 150 MBps.
  • Plug-and-play.
  • Features master/slave device emulation support.


  • Description

    SATA to IDE Converter


    Quick Facts

  • Supports Ultra DMA (UDMA) data transfer rates up to 150 MBps.
  • Plug-and-play.
  • Features master/slave device emulation support.

  • Further Details

  • Complies with Serial ATA 1.0.
  • Supports PIO modes 0–4 and UDMA modes 0–7.
  • Supports ATAPI Packet command set.
  • Also supports additional ATA command for serial ATA SCR access.
  • Serial ATA BIST operation.
  • Serial ATA power save mode supported.
  • Support for 48-bit LBA addressing.

  • In just three easy steps, you can install the SATA to IDE Converter. First, connect the included serial ATA cable between the converter and your computer's serial ATA PCI card. Next, connect the PC power cable to the converter and IDE hard drive (the hard drive must be switched to master mode). Lastly, connect the converter's IDE connector to the IDE hard drive. That's it!


    Technical Specifications for SATA to IDE Converter:

    System Requirements Operating System: Any;
    Hardware: Computer with an available Serial ATA PCI host port; external Ultra ATA hard drive (IDE)
    CE Approval Yes
    Connectors SATA: (1) 7-pin Signal M;
    IDE: (1) 44-pin F


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for SATA to IDE Converter:
