Networking > Legacy Technologies

click photo to enlarge

LE630A

Photo may show similar product

Other views

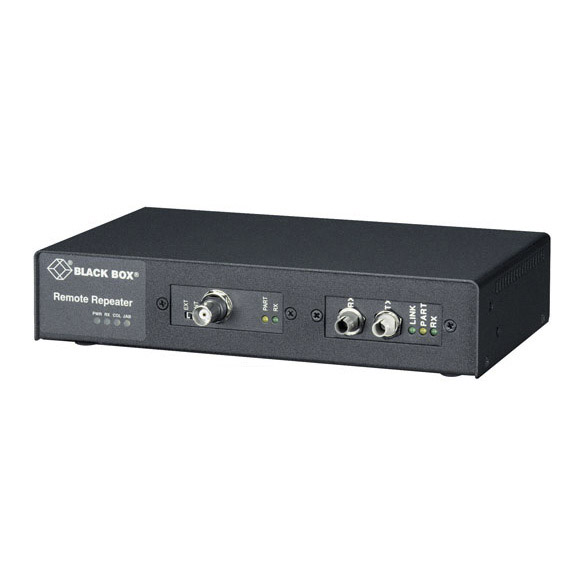

Remote Single-Mode Fiber Optic Repeaters, BNC/Single-Mode ST

Top-quality, standalone repeaters for legacy 10-Mbps Ethernet networks.

LE630A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Support for all Ethernet media types, including standard or Thin coax, 10BASE-T, and fiber.

  • Description

    Remote Single-Mode Fiber Optic Repeaters, BNC/Single-Mode ST


    Quick Facts

  • Support for all Ethernet media types, including standard or Thin coax, 10BASE-T, and fiber.

  • Further Details

  • Compatible with 10BASE-FL and FOIRL standards for extended fiber connections.

    Break the Ethernet coax distance barrier for your network. Use Black Box® Remote Single-Mode Fiber Optic Repeaters to get greater distance by linking two Ethernet segments via fiber cable. The remote repeaters are 10BASE-FL compliant, so you can make long-distance connections. The repeaters are backwards compatible with FOIRL, making them easy to incorporate into your fiber network.

    Autosensing power supplies.
    Just plug in these repeaters. Their internal power supplies adjust automatically to any power source with AC voltage from 90 to 260 VAC and power input frequencies between 47 and 63 Hz.

    Full repeater functionality.
    Each repeater has port connections so you can connect two Ethernet segments. Each segment conforms to IEEE 802.3 specifications for length and number of nodes. And you get precise LAN transmission—each unit performs full signal regeneration and retiming.



  • Technical Specifications for Remote Single-Mode Fiber Optic Repeaters, BNC/Single-Mode ST:

    Standards — Depends on unit: Ethernet v. 1.0/v. 2.0; IEEE 802.3; 10BASE5, 10BASE2, 10BASE-T, 10BASE-FL, FOIRL; DTE
    CE Approval — Yes
    Connectors — Standard Ethernet: (1) DB15 F;
    ThinNet: (1) BNC for RG-58A/U coax cable;
    10BASE-T: (1) RJ-45;
    Fiber optic: (1) pair of ST®
    Indicators — All models: PWR, RX, JAB, COL;
    AUI and BNC ports: (1) Port, (1) RX per port;
    10BASE-T and fiber ports: (1) Link, (1) Port, (1) RX per port
    Power — 115–260 VAC, 60–50 Hz autosensing
    Size — 1.8"H x 8.5"W x 5.4"D (4.6 x 21.6 x 13.7 cm)
    Weight — 2.5 lb. (1.1 kg)
    These products work with:
    • Standard Ethernet Backbone Coax Cable (LCN100)
    • ThinNet Cable (LCN300)
    • CAT5 100-MHz Patch Cable, 4-Pair, Straight-Pinned (EVNSL01, etc.)
    • Single-Mode 9.0-Micron Duplex Fiber Optic Cable, ST–ST (EFN310)
    • Premium Ceramic, Mulimode 62.5-Micron Fiber Optic Patch Cable (EFN110)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
