Networking > Legacy Technologies

click photo to enlarge

LE604A-R4

Photo may show similar product

Other views

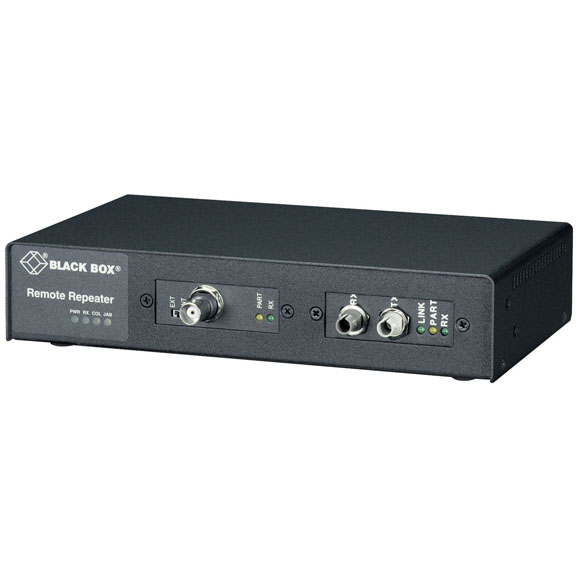

Remote Multimode Fiber Optic Repeater, BNC/Multimode ST

Top-quality, standalone repeater for legacy 10-Mbps Ethernet networks.

LE604A-R4

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Link two Ethernet segments via fiber cable for long-distance connections of more than 1 mile (1.6 km).
  • Support for all Ethernet media types, including standard or Thin coax, 10BASE-T, and fiber.
  • Compatible with 10BASE-FL and FOIRL standards for extended fiber connections.

  • Description

    Remote Multimode Fiber Optic Repeater, BNC/Multimode ST


    Quick Facts

  • Link two Ethernet segments via fiber cable for long-distance connections of more than 1 mile (1.6 km).
  • Support for all Ethernet media types, including standard or Thin coax, 10BASE-T, and fiber.
  • Compatible with 10BASE-FL and FOIRL standards for extended fiber connections.

  • Further Details

    Break the Ethernet coax distance barrier for your network. Use a Black Box® Remote Multimode Fiber Optic Repeater to get greater distance by linking two Ethernet segments via fiber cable. The remote repeater is 10BASE-FL compliant, so you can make long-distance connections over more than a mile (1.6 km). The repeater is backwards compatible with FOIRL, making it easy to incorporate it into your fiber network.

    Autosensing power supplies.
    Just plug in this repeater. It's internal power supply adjusts automatically to any power source with AC voltage from 90 to 260 VAC and power input frequencies between 47 and 63 Hz.

    Full repeater functionality.
    The repeater has port connections so you can connect two Ethernet segments. Each segment conforms to IEEE 802.3 specifications for length and number of nodes. And you get precise LAN transmission—the unit performs full signal regeneration and retiming.

    This product works with:

    • Standard Ethernet Backbone Coax Cable (LCN100)
    • ThinNet Cable (LCN300)
    • CAT5 100-MHz Patch Cable, 4-Pair, Straight-Pinned (EVNSL01, etc.)
    • Premium Ceramic, Multimode, 62.5-Micron Fiber Optic Patch Cable (EFN110)
    Questions? Contact our FREE Tech Support.


    Technical Specifications for Remote Multimode Fiber Optic Repeater, BNC/Multimode ST:

    Standards — Depends on unit: Ethernet v. 1.0/v. 2.0; IEEE 802.3; 10BASE5, 10BASE2, 10BASE-T, 10BASE-FL, FOIRL; DTE
    CE Approval — Yes
    Connectors — Standard Ethernet: (1) DB15 F;
    ThinNet: (1) BNC for RG-58A/U coax cable;
    10BASE-T: (1) RJ-45;
    Fiber optic: (1) pair of ST®
    Indicators — PWR, RX, JAB, COL;
    AUI and BNC ports: (1) Port, (1) RX per port;
    10BASE-T and fiber ports: (1) Link, (1) Port, (1) RX per port
    Power — 90–260 VAC, 47–63 Hz, autosensing, 15 watts
    Size — 1.8"H x 8.5"W x 5.4"D (4.6 x 21.6 x 13.7 cm)
    Weight — 2.5 lb. (1.1 kg)
    This product works with:

    • Standard Ethernet Backbone Coax Cable (LCN100)
    • ThinNet Cable (LCN300)
    • CAT5 100-MHz Patch Cable, 4-Pair, Straight-Pinned (EVNSL01, etc.)
    • Premium Ceramic, Multimode, 62.5-Micron Fiber Optic Patch Cable (EFN110)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
