Industrial > Peripheral Switching & Sharing

click photo to enlarge

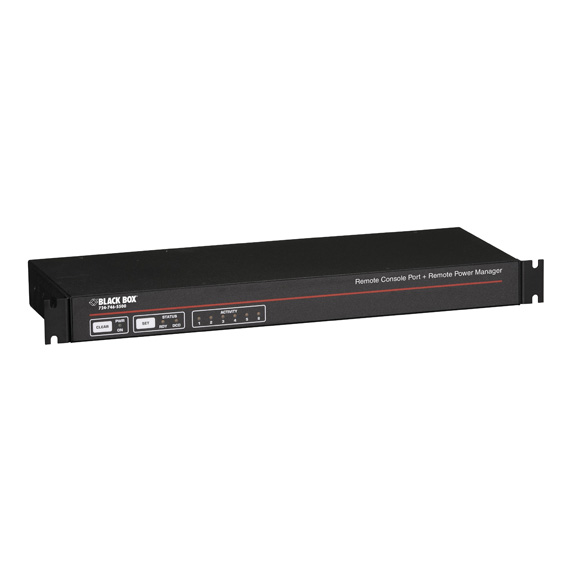

SW549AE-R2

Photo may show similar product

Other views

  • SW549AE-R2
  • SW549AE-R2

Remote Console Port and Remote Power Manager, 208–240 VAC

Remotely manage six RS-232 ports and four power connections.

SW549AE-R2

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Dial in from a remote location to control up to six RS-232 ports.
  • This multifunction box combines a remote console manager, remote power switch, and dialup modem—all in one.


    • Description

    Remote Console Port + Remote Power Manager, 208–240 VAC


    Quick Facts

  • Dial in from a remote location to control up to six RS-232 ports.
  • This multifunction box combines a remote console manager, remote power switch, and dialup modem—all in one.

    • Further Details

  • Use to remotely control power to four devices.
  • Offers easy local and remote any-port-to-any-port matrix switching.
  • Get in-band and out-of-band server management.
  • Change configurations, connect users, and more.
  • Reboot servers, routers, firewalls, and other remote equipment.
  • Compatible with modem speeds from 300 bps to 115.2 kbps.
  • Includes a built-in 33.6-Kbps modem.
  • Only takes up 1U of rack space.
  • Includes dialback security and invalid access lockout.
  • Use Web browser access for easy setup and operation.
  • A 32K buffer on each port captures incoming data.

    • Well rested and in control.
    Network administrators who want to make the best of late-night emergency calls can get more sleep, thanks to the Remote Console Port and Remote Power Manager. It gives you in-band and/or out-of-band access to RS-232 console ports and maintenance ports on up to six UNIX® servers, routers, and other pieces of network equipment. You can also use it to control power and reboot up to four servers, cameras, and other remote devices.

    Call each port by name.
    With this slender 1U box, you can remotely control and manage up to six RS-232 servers and devices. You can access each port individually, by number, name, or group. Configure each port for passwords, data rates, parity, and other operating parameters. You can also collect buffered data and a variety of other administrative functions. Plus, the Remote Console and Port Manager features full matrix capabilities so any port can connect to any other port.

    You have the power.
    You can control each of the four A/C power outlets. Assign plug names, check plug status, switch plugs on and off, and reboot them. You can also assign sequenced power-up times.

    Just call.
    The Remote Console Port and Remote Power Manager features an internal 33.6-kbps modem with automatic rate detection from 300 bps to 115.2 kbps. A Web broswer provides easy setup and operation. And you can run up to four inbound Telnet™ connections simultaneously. A password feature prevents unauthorized access. You can also assign passwords and dialback numbers.

    Capture data.
    A buffer mode enables you to capture and store incoming 32 KB of data for each port. You can view and save the information or erase it. This is useful in analyzing alarms or other critical information.


    Technical Specifications for Remote Console Port and Remote Power Manager, 208–240 VAC:

    Character Format — 7/8 bits; Even/Odd/On Parity; 1, 2 stop bits
    Flow Control — X-ON/X-OFF, RTS/CTS, Both, None
    Memory — Stores parameters and captured data; non-volatile, 512K statistically allocated
    Speed — 300 bps to 115.2 kbps
    Standards — UL®, cUL, FCC Class A
    Timeouts — No activity disconnects port/modem session; can set at none, or 2, 5, 15, or 30 minutes
    CE Approval — Yes
    Interface — Network: Ethernet 10BASE-T;
    Users: RS-232 DTE
    Connectors — 10BASE-T network: (1) RJ-45;
    RS-232: (6) DB9 M (DTE);
    Power input: (1) IEC-320-C14, 15 amps total;
    Power output: (4) IEC-320-C13
    Indicators — (14) LEDs: (1) Power On, (1) Ready, (1) Data Carrier, (1) Network Activity, (6) Data Activity (Ports 1–6), (4) Plug On/Off (Plugs 1–4)
    Power —208–240 VAC, 50–60 Hz, 10 amps total
    Size — 1.75"H (1U) x 17"W x 6.5"D (4.4 x 43.2 x 16.5 cm); includes 19" (48.3-cm) rackmount brackets
    Weight — Shipping: 8 lb. (3.6 kg)
