Networking > Legacy Technologies

click photo to enlarge

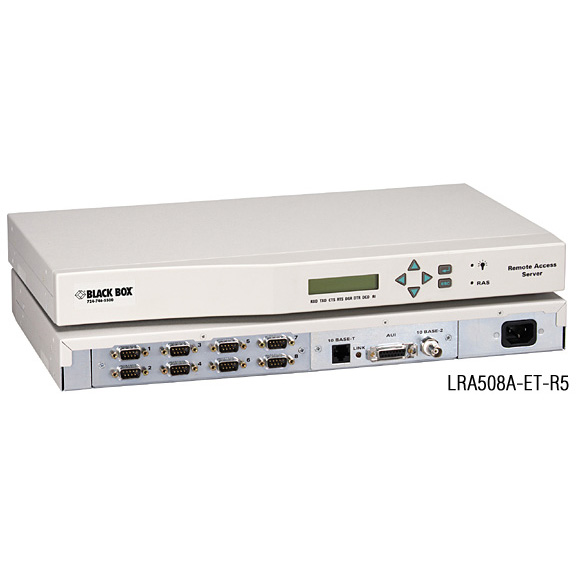

LRA508A-ET-R5

Photo may show similar product

Other views

Remote Access Server, Ethernet, 8-Port

Remote dialup access to an Ethernet network.

LRA508A-ET-R5


One year Warranty

Product Highlights

  • Configure any port for dial in, dial out, or both.
  • Support Windows 95 or 98, Windows NT, UNIX, or DOS, plus INT 14 (IBM®) and NASI (Novell).

  • Description

    Remote Access Server, Ethernet, 8-Port


    Quick Facts

  • Configure any port for dial in, dial out, or both.
  • Support Windows 95 or 98, Windows NT, UNIX, or DOS, plus INT 14 (IBM®) and NASI (Novell).

  • Further Details

  • Multilanguage support: English, French, Italian, German, Spanish, and Japanese.
  • Multilevel security and packet filtering.
  • Supports external ISDN adapters.
  • Front-panel display and keypad.
  • In-band and out-of-band management.
  • Work with NetWare 3.x or 4.x, OS/2, LAN Server, Windows NT, IBM, or UNIX hosts.

    If you’re not in the office every day but need dial-in and dial-out access to a variety of LAN servers and the Internet, consider one of our Remote Access Servers. Remote Access Servers provide dial-in access for remote users, telecommuters, or business travelers.

    They also enable everyone on your LAN to share a pool of modems, saving you money on additional modems or lines. This can save you a fortune on additional modems and lines.

    The servers feature high-speed serial ports to connect to common async modems or ISDN adapters. And they handle sustained data-transfer rates up to 115.2 kbps.

    Extensive system support
    For greater flexibility, Remote Access Servers work with a wide range of hosts—NetWare®, OS/2® LAN Server, Windows NT®, and UNIX®. In fact, they support all major desktop operating systems as well as all major LAN operating systems. Remote PCs can access all network resources in NetWare, OS/2 LAN Server, Windows NT, or LAN Manager.

    The latest version of the Remote Access Server boasts features that make it even more flexible. In addition to supporting more operating systems, the server enables you to dial up your LAN using IP.

    Tight security
    Protect corporate information systems from unauthorized access with the server’s individual user names and passwords and fixed dialback user confirmation.

    The server has features built-in, multilevel Windows NT Domain Server Authentication security. In addition to individual user name and password protection, the server supports fixed dialback confirmation. Along with Windows NT Domain Server, the server supports PAP, CHAP, NetWare Bindery, PassGo Defender, and SecurID-ACE/Server. Packet filtering accepts or rejects incoming data packets according to filter definitions you set.

    Easy installation
    The server’s menu-driven screens guide you through its simple installation process. You can be on-line quickly and easily in only five minutes! Install and operate the provided manager software from a PC attached directly to a LAN or remotely via a high-speed modem. The front-panel display and keypad make performing management tasks over the server easy.

    For maximum flexibility, Remote Access Servers have in-band and out-of-band management for Windows® or DOS users. Windows 95 or 98 users also get a native dialup networking facility.


    What®s included:
    • AC power cord
    • Pair of rackmount ears
    • Pair of screws for rackmount ears
    • 6-ft. (1.8-m) DB9 F/DB9 F cable
    • (5) 3.5-inch diskettes: (2) manager, (2) client, (1) dialout
    • User’s manual

  • Technical Specifications for Remote Access Server, Ethernet, 8-Port:

    LAN Environments — Novell® NetWare 3.x and 4.x, IBM OS/2 LAN Server, Windows NT Advanced Server, Microsoft® LAN Manager, UNIX, IBM hosts
    Management — From remote or local PCs; IP address management through DHCP server, IP address pool, dial-in client, user record, or port record
    Memory — 32-bit RISC processor; 1 MB flash ROM; 2 MB RAM
    Network Driver Support — ODI, NDIS 2.0
    Operating Systems Supported — Management software: Windows 95/98/Me, Windows NT, Windows 2000;
    Client software: Windows 9.x, Windows NT, Windows 2000, Linux
    Protocol — ARAP 1 or ARAP 2, Novell® IPX™, TCP/IP, NetBIOS/NetBEUI, LLC2 (802.2), PPP, PAP, CHAP DHCP BOOTP, SNMP
    Remote PC Requirements — IBM PC DOS 5.0 or higher; IBM compatible 80386 or better; industry-standard async modems (minimum 14.4 kbps recommended) or ISDN terminal adapters; 16550 UART recommended
    Security — Windows NT Domain Server Authentication; PAP, CHAP; Callback (Windows 95/98/Me, Windows NT, Windows 2000); TCP/IP or IPX packet filtering; protocol enable/disable; RADIUS; internal user lists; NetWare Bindery support; PassGo Defender (Axent DSS); SecurID-ACE/Server; password aging function
    Connectors — LRA502A-ET-R5: (2) DB9 F, (1) RJ-45, (1) DB15 F, (1) BNC, (1) IEC;
    LRA504A-ET-R5: (4) DB9 F, (1) RJ-45, (1) DB15 F, (1) BNC, (1) IEC;
    LRA508A-ET-R5: (8) DB9 F, (1) RJ-45, (1) DB15 F, (1) BNC, (1) IEC;
    LRA504A-TR-R5: (4) DB9 F, (1) RJ-45, (1) DB15 F, (1) IEC
    Indicators — 2-line x 16-character LCD panel: RXD, TXD, CTS, RTS, DSR, DTR, DCD, RI, Power
    Power — 90–230 VAC, 50–60 Hz, autosensing, internal, 40 watts
    Size — LRA502A-ET-R5: 1.9"H x 8.5"W x 8.8"D (4.8 x 21.6 x 22.4 cm);
    All others: 1.8"H x 17"W x 9.7"D (4.6 x 43.2 x 24.6 cm)
    Weight — LRA502A-ET-R5: 4.9 lb. (2.2 kg);
    All others: 9.7 lb. (4.4 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Remote Access Server, Ethernet, 8-Port:


    Connect your Remote Access Server, Ethernet, 8-Port with:
