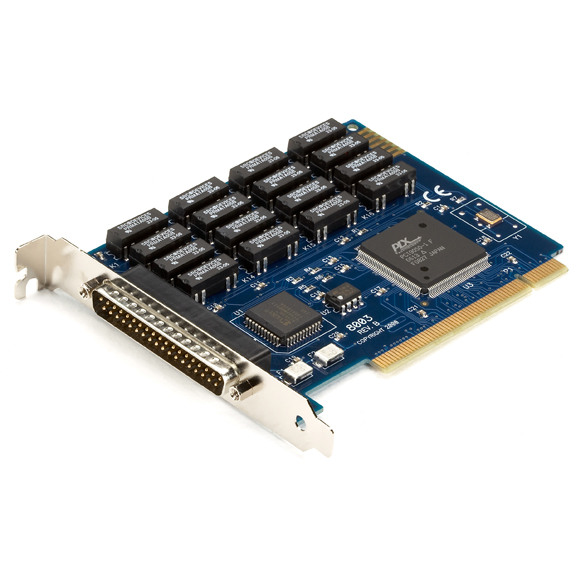

IC905C

Photo may show similar product

Other views

Relay Output Card, PCI, 16 Outputs

Rely on the relay! Count on these cards for long-lasting output control.

IC905C

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Plug into a PCI bus slot for simple output-only control.
  • Use for PC-based control and automation of industrial equipment, including sensors, switches, security control systems, and other automation systems.
  • Models with 16 or 32 reed relay outputs.

  • Description

    Relay Output Card, PCI, 16 Outputs


    Quick Facts

  • Plug into a PCI bus slot for simple output-only control.
  • Use for PC-based control and automation of industrial equipment, including sensors, switches, security control systems, and other automation systems.
  • Models with 16 or 32 reed relay outputs.

  • Further Details

  • Software drivers are included for Windows® 98/Me/XP, Windows NT®, and Windows 2000.
  • Software development kit is also included—write your own applications!
  • Additional management software is included.
  • Ideal for integrating unattended status-monitoring equipment and fallback network-switching circuits.
  • Support all PCI interrupts.
  • Addressing from 100H–3FFH.
  • DB37 male connector.
  • Highly reliable 10-VA DIP reed relays.

    For industrial control applications in which you’re only concerned about output, use BLACK BOX® Relay Output Cards. They provide 16 or 32 outputs for applications such as switching, control systems, security, and other automation systems.

    The output cards feature 16 or 32 reed relay outputs for high-quality, long-life, and low-current (10-watt maximum) dry-contact switch closures. The relays are normally open; they close when energized. Writing a "1" to the proper port bit can individually energize each relay.

    To simplify cable connections, you can connect the cards' DB37 connectors directly to a terminal block. The card with 32 Outputs (IC908C) includes two 37-pin male/female terminal blocks. You can also order a DB37 Cable and Terminal Block (to order, see "Related Products").

  • Technical Specifications for Relay Output Card, PCI, 16 Outputs:

    Channels IC905C: (16) output;
    IC908C: (32) output
    MTBF <150,000 hours (calculated)
    Output Relay 200 million operations: 10-VA resistive load
    Relay Contact Current (Maximum) 10.5 A DC or AC RMS
    Relay Contact Power Ratings (Maximum) 10 W
    Relay Contact Resistance Initial: 0.15 ohms
    Relay Contact Speed Operate: 0.5 ms;
    Release: 0.5 ms;
    Bounce: 0.5 ms
    Relay Contact Voltage (Maximum) 100-V AC/DC
    Relay Rated Life Low load: 200,000,000 closures;
    Maximum load: 100,000,000 closures
    Signal TTL compatible address, data, and control
    Throughput (Maximum) 600 Hz
    CE Approval Yes
    Connectors IC905C: (1) DB37 M;
    IC908C: (1) DB37 M, (1) DB37 F
    Power From the bus;
    Consumption: Supply line: +5 VDC;
    Rating: 270 mA
    Size 4.2"H x 6.3"W (10.7 x 16 cm)
    Weight Shipping: 0.3 lb. (0.1 kg)
    These products work with:
  • DB37 Cable and Terminal Block (EDN37-SP)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.

  • Resources for Relay Output Card, PCI, 16 Outputs:

    Product Data Sheets


    Connect your Relay Output Card, PCI, 16 Outputs with:
