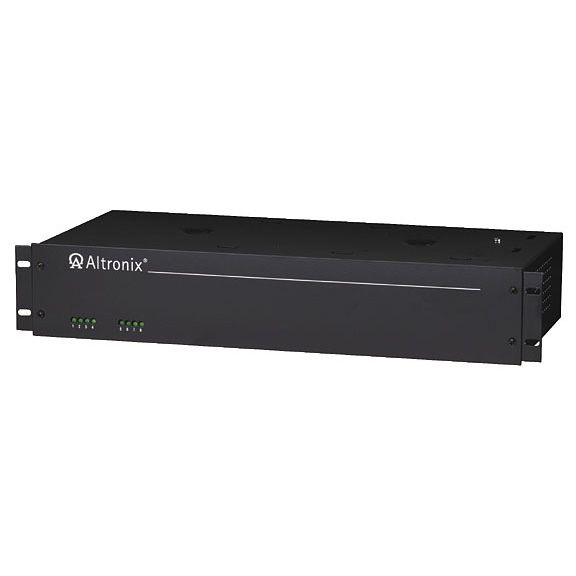

R248UL

Photo may show similar product

Other views

Rackmount UL Listed CCTV Camera and Accessory Power Supply with (8) Individually Fused 24-VAC Outputs

Rackmount power for your 24-VAC security cameras.

R248UL

Extended Double Diamond™ Warranty Available (3 Additional Year)

Product Highlights

  • Provides 24 VAC distributed via the fused outputs with a total continuous supply current of 3.5 amps (85 VA).
  • Delivers reliable power to CCTV cameras and other video accessories.


  • Further Details

  • Easy to install and link to devices.
  • All outputs are surge protected.
  • Equal power distribution means your cameras stay synchronized.

  • Synchronizing your cameras: It's important to any security monitoring application that requires precision when recording multiple feeds. And the key to it all is distributing power evenly.

    The Rackmount UL® Listed CCTV Camera and Accessory Power Supply maintains camera synchronization by outputting power evenly while providing a total supply current of 24 VAC at 3.5 amps (85 VA). It also centralizes your power distribution with a simpler cable topology that's easier to manage.

    Fuses protect each power output. These fuses offer surge suppression to minimize the affect of adverse power conditions on devices wired to the outlets and help ensure maximum uptime for connected CCTV components.

    Save space and provide power to devices from a wiring closet with the Rackmount UL® Listed CCTV Camera and Accessory Power Supply. It has flanges for easy mounting in standard 19" racks or cabinets.

    It features a removable faceplate and sliding rear section for convenient access to the terminal blocks.

    The green AC power LED indicators tell you that the rackmount chassis is supplying power properly. To power down all connected devices simultaneously or to reset the internal circuit breaker, just flip the unit’s main ON/OFF switch.

    This solution is UL® Listed for Commercial CCTV Equipment—a designation that means you can be sure it meets stringent safety standards for its recommended use. The listing also may help your business conform to related ISO certification requirements.

    The actual power supply outlets contain terminal block connections. To wire the block to the cameras or other devices, order Bulk Control Cable, which is a 2-conductor cable with one conductor dedicated to carrying power to an end device.

    Fuse Ratings The main fuse, inline fuse, and all output fuses are rated at 3.5 A/250 VAC
    Output Current (Maximum per Output) 3.5 A
    Power Input: 115 VAC, 50/60 Hz, 0.85 A;
    Output: 24 VAC at 3.5 A (85 VA) total supply current
    Size 3.5"H (2U) x 19"W x 8.5"D (8.9 x 48.3 x 21.6 cm)
    Warranty 1 year
    This product works with:
    • Bulk Control Cable, 1-Pair, 2-Conductor, Stranded, Unshielded (EVNSEC04–05, 08–09)
