Digital Signage & Multimedia > Video Infrastructure

click photo to enlarge

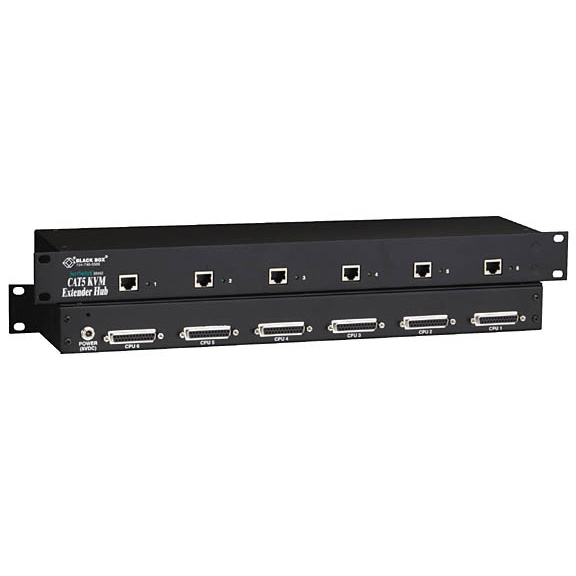

ACU1006RA

Photo may show similar product

Other views

Rackmount ServSwitch Brand CAT5 KVM Extender Hubs

KVM extensions up to 1000 feet plus dual-access and remote switching in a convenient rackmount chassis.

ACU1006RA

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • These hubs combine multiple extenders. It’s like getting 6 or 12 units in 1 box—so you save money and space!

  • Description

    Rackmount ServSwitch Brand CAT5 KVM Extender Hubs, 6-Port Standard


    Quick Facts

  • These hubs combine multiple extenders. It’s like getting 6 or 12 units in 1 box—so you save money and space!

  • Further Details

  • Use with Standalone Remote Hubs (ACUREM, ACUREMSW, ACUMREM) or the Rackmount Remote Unit (ACU1006MRA).
  • Put your keyboard, monitor, and mouse up to 1000 feet (304.8 m) from a CPU or ServSwitch.
  • The Dual-Access Hub (ACU1006DRA) enables you to attach a local and remote workstation to each server.
  • Use inexpensive CAT5 UTP cable.
  • Built-in surge protection.
  • Fully adjustable video equalization for the best possible video quality.
  • To convert your USB-style keyboard and mouse signals to PS/2, order the USB to PS/2 Converter (KVUSB).
  • Add CATx KVM extension with a CATx KVM Extender Single-Video Remote Unit (ACUR001A).


  • Our extender hubs make it easy to put your CPUs or ServSwitch™ KVM switches where you want them—and they give you rackmount convenience! They use inexpensive CAT5 cable, so cabling is easy. You may be able to use the cable you already have installed!

    These extender hubs combine the functions of 6 or 12 regular local units into 1 rackmount chassis. Simply connect 6 or 12 remote units via CAT5 UTP and attach your CPUs with our Coax CPU Cable (EHN230). Use these hubs with ACUREM, ACUREMSW, ACUMREM, and ACU1006MRA remote units.

    The extender hubs require no software, are operating system independent, and work with a wide variety of hardware, including Microsoft® IntelliMouse®. The hubs perform complete PS/2® keyboard and mouse emulation for the attached CPUs.

    The extender hubs also feature built-in surge protection to defend your CAT5 link side against surges and spikes.

    Standard Extender Hubs (ACU1006RA, ACU1012RA)
    Save money by getting 6 or 12 local units in a single box. Rackmounting saves you space, too.

    Dual-Access Extender Hub (ACU1006DRA)
    Our dual-access hub takes the single-access hub and adds six sets of KVM connections—one for each attached CPU. This enables you to attach two workstations to each CPU—one local and one remote.

    Use the local connections to monitor and diagnose the attached CPUs. Just plug the keyboard, monitor, and mouse into the connectors for the CPU you wish to monitor. Or add a ServSwitch and have local access to all CPUs from a single keyboard, monitor, and mouse.



    Technical Specifications for Rackmount ServSwitch Brand CAT5 KVM Extender Hubs:

    Clamping Voltage — Up to 15 volts
    Compatibility — Keyboard: PC/AT®, PS/2®;
    Monitor: VGA, Super VGA, XGA®;
    Mouse: PS/2 mouse only (user)
    Connectors — ACU1006RA: Interconnect: (6) RJ-45; CPU: (6) DB25 F;
    ACU1012RA: Interconnect: (12) RJ-45; CPU; (12) DB25 F
    ACU1006DRA: Interconnect: (6) RJ-45; CPU: (6) DB25 F; Keyboard and mouse: (12) 6-pin mini DIN F; Monitor: (6) HD15 F
    Power — 100–240 VAC, 50–60 Hz, external, autosensing, with IEC connector and power cord
    Size — 1.75"H (1U) x 19"W x 4.5"D (4.4 x 48.3 x 11.4 cm);
    These products work with:
  • Standalone Remote Units for CAT5 KVM Extender Hubs (ACUREM, ACUREMSW, ACUREM)
  • Rackmount Remote Units for CAT5 KVM Extender Hubs (ACU1006MRA)
  • USB to PS/2 Converter (KVUSB)
  • CATx KVM Extender Single-Video Remote Unit (ACUR001A)
  • CAT5 100-MHz Solid-Conductor Bulk Cable, 4-Pair (EYN840A, EYN860A)
  • CAT5 100-MHz Solid-Conductor Cable, 4-Pair, Straight-Pinned (EYN556MS, EYN550MS, etc.)
  • Questions? Contact our FREE Tech Support.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Rackmount ServSwitch Brand CAT5 KVM Extender Hubs:


    Connect your Rackmount ServSwitch Brand CAT5 KVM Extender Hubs with:

    Accessory: ACUREM

    ServSwitch Brand CAT5 KVM Extender Standalone Remote Units

    ServSwitch Brand CAT5 KVM Extender Standalone Remote Units, 1000-ft. Maximum Distance, Standard

    Accessory: ACU2001A

    ServSwitch Brand Single-Video CATx KVM Extenders

    ServSwitch Brand Single-Video CATx KVM Extenders, Single-Access Kit

    Accessory: EYN556MS-0010

    CAT5e Solid-Conductor Patch Cable, PVC, Straight-Pinned, Beige, 10-ft. (3.0-m)

    CAT5e Solid-Conductor Patch Cable, PVC, Straight-Pinned, Beige, 10-ft. (3.0-m)

    Accessory: ACUR004A

    ServSwitch Brand Quad-Video CATx KVM Remote Extender

    ServSwitch Brand Quad-Video CATx Remote Extender

    Accessory: ACU1006MRA

    ServSwitch Brand CAT5 KVM Extender Rackmount Remote Unit

    ServSwitch Brand CAT5 KVM Extender Rackmount Remote Unit (Six ACUMREM Modules in a Rackmount Chassis), Micro

    Accessory: EYN717A

    CAT5 Unshielded Solid, 100-MHz Bulk Cable, 24 AWG, 2-Pair, PVC, Gray, Custom Lengths

    CAT5 Unshielded Solid, 100-MHz Bulk Cable, 24 AWG, 2-Pair, PVC, Gray, Custom Lengths
