Digital Signage & Multimedia > Video Infrastructure

click photo to enlarge

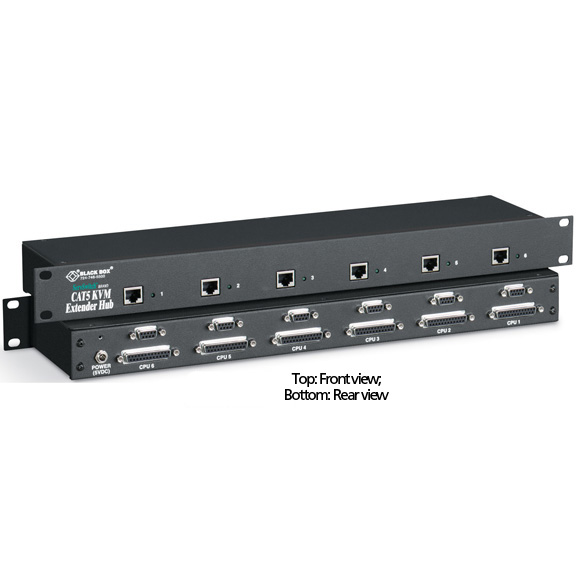

ACU1006DVRA

Photo may show similar product

Other views

Rackmount ServSwitch Brand CAT5 KVM Extender Hubs

KVM serial and audio extensions up to 1000 feet.

ACU1006DVRA

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Combine six extenders in one box.
  • Dual-access capability enables you to connect two workstations to each CPU.

  • Description

    Rackmount ServSwitch Brand CAT5 KVM Extender Hubs, 6-Port Dual-Access with Bidirectional Serial and Stereo Audio


    Quick Facts

  • Combine six extenders in one box.
  • Dual-access capability enables you to connect two workstations to each CPU.

  • Further Details

  • Send keyboard, monitor, mouse, and serial and bidirectional stereo audio signals up to 1000 feet (304.8 m) from a CPU or ServSwitch.
  • Hub units feature built-in surge protection on the CAT5 link side.
  • Fully adjustable video equalization for the best possible video quality.
  • Save money and space.


  • Our extender hubs make it easy to put your CPUs or ServSwitch™ KVM switches where you want them—and they combine the functions of six regular local units into one rackmount chassis. Simply connect six remote units via CAT5 UTP and attach your CPUs with our Coax CPU Cable (EHN230).

    The extender hub units require no software, are operating-system independent, and work with a wide variety of hardware. They also perform complete PS/2® keyboard and mouse emulation for the attached CPUs.

    Extender Hub with Serial and Bidirectional Stereo Audio (ACU1006VRA)
    Each port on this unit has transparent serial links, and all are wired as DCE. It transmits TX, RX, RTX, CTS, DTR, and DSR signals.

    This hub also has serial-extension capabilities that enable you to transmit KVM signals and serial data up to 1000 feet (304.8 m). Audio extension provides bidirectional stereo transmission across the link on all ports. Audio is sent digitally for noise-free, near-CD quality sound.

    Dual-Access Extender Hub with Serial and Bidirectional Stereo Audio (ACU1006DVRA)
    This extender offers all the features of the ACU1006VRA but with dual-access capabilities. This enables you to attach two workstations to each CPU—one local and one remote.

    Use the local connections to the attached CPUs. Just plug the keyboard, monitor, and mouse into the connectors for the CPU you wish to monitor. Or add a ServSwitch for local access to all CPUs from one keyboard, monitor, and mouse.


    Technical Specifications for Rackmount ServSwitch Brand CAT5 KVM Extender Hubs:

    These products work with:
    • Coax CPU Cable for ServSwitch CAT5 KVM Extenders (EHN230)
    • DB9 Extension Cable (with EMI/RFI Hoods) (EDN12H)
    • CAT5 100-MHz Solid-Conductor Bulk Cable, 4-Pair (EYN840A, EYN860A)
    • CAT5 100-MHz Solid-Conductor Cable, 4-Pair, Straight-Pinned (EYN737MS)

    Also work with:
    • ATPS/2 Mouse GHOST Emulator (AC244A)
    • 5-Pin DIN Male to 6-Pin Mini DIN Female Keyboard Adapter with 6“ Cable (FA222-R2)
    • USB to PS/2 Converter (KVUSB).
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Connect your Rackmount ServSwitch Brand CAT5 KVM Extender Hubs with:
