Infrastructure Hardware > Patch Panels

click photo to enlarge

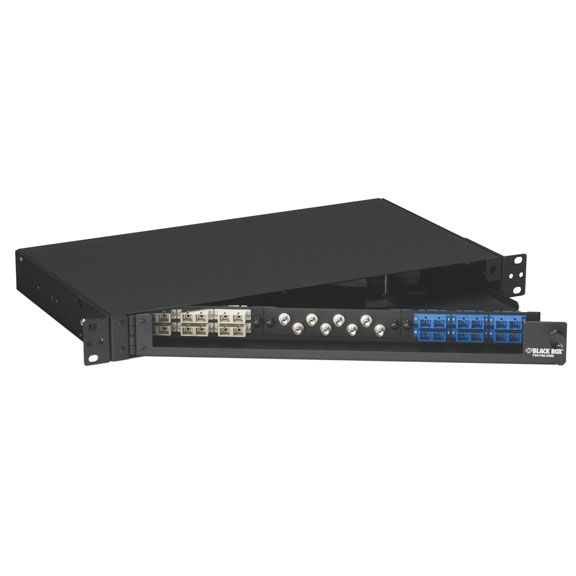

JPM407A-R4

Photo may show similar product

Other views

Rackmount Fiber Shelf, 1U, 3-Adapter Panel

Limited rack or cabinet space? This 1U fiber enclosure is your solution.

JPM407A-R4


Lifetime Warranty

Product Highlights

  • Provides termination for optical cables on the premises or in a central office.
  • Constructed of 16-gauge steel housing.
  • Compact and rugged enough for commercial applications.

  • Description

    Rackmount Fiber Shelf, 1U, 3-Adapter Panel


    Quick Facts

  • Provides termination for optical cables on the premises or in a central office.
  • Constructed of 16-gauge steel housing.
  • Compact and rugged enough for commercial applications.

  • Further Details

  • Corrosion-resistant powder coating finish.
  • Accepts three adapter panels. (Each adapter panel has 6 or 12 connectors, for a total of 18 to 36 ports).

  • With this shelf, you can organize and protect fiber connections and splice trays in your 19" or 23" rackmount fiber applications. This shelf is particularly useful in cabinets and racks where little space is available. It accepts three snap-in adapter panels (JPM404A-R2, etc.) for connections. The cable punchouts are aligned for easy stacking of shelves.

    The adapter panels are recessed horizontally in the swing-out tray for superior patch cord protection. A splice tray stud enables you to install pigtail splice trays.

    The Rackmount Fiber Shelf comes with rackmount brackets that are adjustable for mounting in cabinets and two-post racks. They're set for 19" racks but can be reversed for use in 23" racks.


    What’s included:
  • Rackmount Fiber Shelf
  • (4) 10-32 cuphead screws
  • (4) 12-24 cuphead screws
  • (4) 4-inch cable ties
  • (30) 3-inch cable ties
  • Red “danger” sticker that warns you of laser hazard
  • (6) 1-inch stick-on rectangular cable holders
  • Pair of black spool rings for cable management
  • User’s manual


    This product works with:
  • Standard Fiber Adapter Panels (JPM404A-R2, etc.)
  • High-Density Fiber Adapter Panels (JPM411A-R2–JPM412A-R2, JPM413A–JPM414A, JPM415A-R2–JPM416A-R2, JPM420A–JPM421A)
  • Rackmount Fiber Cabinets (JPM418A-R3, JPM419A, JPM406A-R4)
  • Open-Style Fiber Wall Cabinets (JPM400A, etc.)
  • Lock-Style Fiber Wall Cabinets (JPM402A-R2, etc.)
  • Splice Tray (JPM440A)
    Questions? Contact our FREE Tech Support.

  • Technical Specifications for Rackmount Fiber Shelf, 1U, 3-Adapter Panel:

    Capacity — Supports 3 fiber adapters; Fits in 19" or 23" racks
    Material — 16-gauge cold-rolled steel
    Size — 1.75"H (1U) x 17"W x 11"D (4.4 x 43.2 x 27.9 cm)
    Weight — 10.3 lb. (4.7 kg)
    NOTE: For Rackmount Fiber Panels that are preloaded with adapters, see the JPM370A and JPM375A.

    This product works with:
  • Standard Fiber Adapter Panels (JPM404A-R2, etc.)
  • High-Density Fiber Adapter Panels (JPM411A-R2–JPM412A-R2, JPM413A–JPM414A, JPM415A-R2–JPM416A-R2, JPM420A–JPM421A)
  • Rackmount Fiber Cabinets (JPM418A-R3, JPM419A, JPM406A-R4)
  • Open-Style Fiber Wall Cabinets (JPM400A, etc.)
  • Lock-Style Fiber Wall Cabinets (JPM402A-R2, etc.)
  • Splice Tray (JPM440A)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
