Datacom > Modems & CSUs

click photo to enlarge

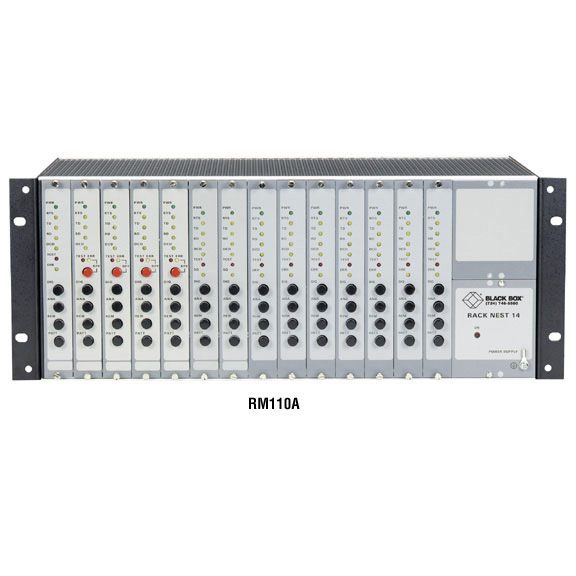

RM110AE

Photo may show similar product

Other views

RackNest 2/14, 230-VAC

Place up to 14 modem cards in this powerhouse of a rack!

RM110AE

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Centralize your modem and line driver connections in one easy-to-manage platform.
  • High-density 19" modem rack.
  • Compact! Only 4U high.
  • Cards and power supplies are hot-swappable.

  • Description

    RackNest 2/14, 230-VAC


    Quick Facts

  • Centralize your modem and line driver connections in one easy-to-manage platform.
  • High-density 19" modem rack.
  • Compact! Only 4U high.
  • Cards and power supplies are hot-swappable.

  • Further Details

    The RackNest 2/14 is a compact, high-density rack that houses up to 14 hot-swappable short-haul modem and line driver cards. Simply choose the speed, operation, and interface you need.

    It works with balanced or unbalanced G.703 equipment. Unbalanced interfaces use only one transmit, one receive, and one ground lead in contrast to balanced interfaces, which use a pair of transmit and receive leads.

    The RackNest 2/14 has a snap-type terminal block for the line interface and a 25-pin connector for a digital interface.

    The RackNest accommodates and includes one 115-VAC or 230-VAC power supply. You might want to order a second power supply as a backup. Or purchase model RM110A-2PS, which already comes with dual power supplies for built-in power redundancy. You can hot-swap power supplies during operation with no effect on the modems and their data transmission.


    Technical Specifications for RackNest 2/14, 230-VAC:

    CE Approval — Yes
    Size — 7"H x 19"W x 10.4"D (17.8 x 48.3 x 26.4 cm)
    These products work with:
  • RS-232 Extended-Distance Cable (EDN25T, EDN25C)
  • RS-232 Low-Noise Cables (ECM25T, ECM25C)
  • V.35 Interface Cable (EYNT450, EYN450)
  • CAT5 100-MHz Solid-Conductor Cable, 4-Pair, Straight-Pinned (EYN556MS, EYN737MS, EYN550MS, EYN790MS)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.

  • Resources for RackNest 2/14, 230-VAC:

    Product Data Sheets


    Connect your RackNest 2/14, 230-VAC with:

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A One year warranty is included.

    Extended Two years for one Warranty Available


    Protect your purchase with an additional Two years for oneDouble Diamond™ warranty!
    Cost: $125.00

    Extended Three years for two Warranty Available


    Protect your purchase with an additional Three years for twoDouble Diamond™ warranty!
    Cost: $249.99

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    The most complete product warranty exclusively from Black Box

    The Double Diamond™ Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most products come with a one- or two-year warranty. Some products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life! Standard Warranty features are as follows:

    Worry-Free Purchases

    If your new Black Box® brand products are accidentally damaged, you're covered with this no-questions asked warranty. FREE

    Coverage

    Double Diamond™ is the standard warranty that comes with your new Black Box® brand product. Most products come with a one- or two-year warranty.

    Lifetime Guarantees

    Many products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life.

    Fast Service

    During the warranty period, Black Box® Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Extra Coverage

    Extend your warranty or protect a previously purchased Black Box® brand product* for an additional year for only 10% of the current retail price! And when you do, we give you the second year of extended coverage free! FREE Tech Support Hotline. No cost. No contracts. No kidding!

    No-Risk 45-Day Return Policy

    If it's not right, send it back.
    (Excludes custom built products)

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! Forget It.
    Tech Support Hotline 100% FREE! $$$
    Product SKU Price Quantity
    RackNest 2/14, 230-VAC RM110AE $1,249.95

    RackNest 2/14, 115-VAC RM110A $929.95



    Add to Cart

    Price: $1,249.95

    Quantity

    Warranty

    Total

    Shipping Info

    Usually Ships in 3-5 days


    45-day return policy
