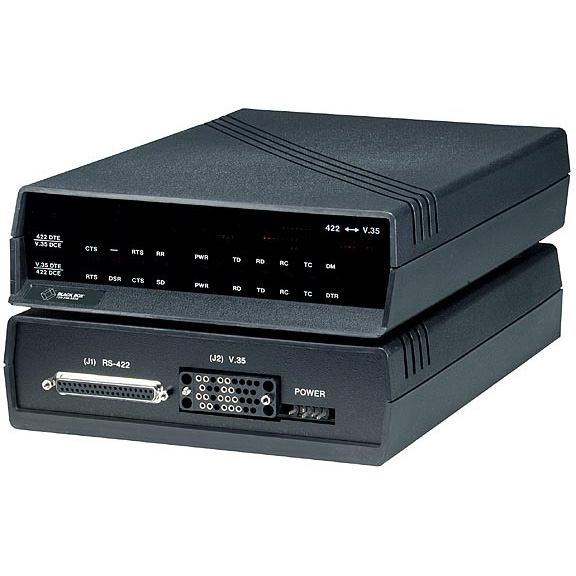

IC483A-R2

Photo may show similar product

Other views

RS-422 to V.35 Interface Converters, Standalone

Fast 2.5 Mbps for T1 applications.

IC483A-R2

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Fast bidirectional conversion of RS-422 and V.35 signals.
  • Available in standalone and rackmount card versions.

  • Description

    RS-422 to V.35 Interface Converters, Standalone


    Quick Facts

  • Fast bidirectional conversion of RS-422 and V.35 signals.
  • Available in standalone and rackmount card versions.

  • Further Details

    Convert all commonly used synchronous V.35 and RS-422 signals bidirectionally at speeds up to 2.5 Mbps! Because the converter is transparent to flow control, transmission is never delayed, which makes it perfect for T1 applications!

    Strap-selectable DCE or DTE configuration provides quick setup. And the heavy-duty plastic casing makes it ideal for industrial settings.


    Technical Specifications for RS-422 to V.35 Interface Converters, Standalone:

    Speed (Maximum) 2.5 Mbps
    CE Approval IC483A-R2;
    230-VAC version: IC483AE-R2
    Connectors RS-422: (1) DB37 F (pinned to RS-449 specifications);
    V.35: M/34 F
    Power 115 VAC, 60 Hz, 16 watts
    Size Standalone: 2.3"H x 8"W x 11.9"D (5.8 x 20.3 x 30.2 cm);
    Card: 7.5"W x 10.5"D (19.1 x 26.7 cm)
    Weight 2 lb. (0.9 kg)
    These products work with:
    • DB37 Interface (RS-449) Cable, Male/Male (EDN37T-MM)
    • V.35 Interface Cable, Male/Male (EYNT450-MM)

    Also work with:
    • 8-Card Rack (RM060)
    • 11-Card Rack (48-VDC) (RM062A)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for RS-422 to V.35 Interface Converters, Standalone:

    Product Data Sheets


    Connect your RS-422 to V.35 Interface Converters, Standalone with:

    Accessory: EDN37T-0010-MM

    DB37 Interface Cable, Male/Male, 10-ft. (3.0-m)
