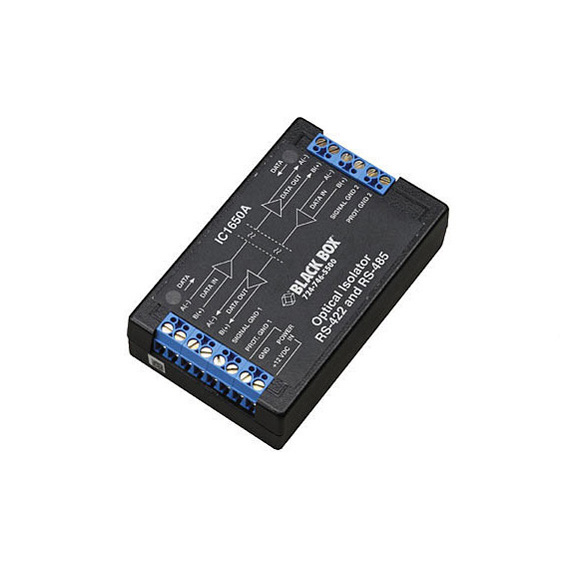

RS-422 and RS-485 Optical Isolator/Repeater

Protect your lines while making RS-422/RS-485 connections.

IC1650A-US

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Connect systems while protecting them from damaging ground loops.
  • Isolates one RS-485 device from the rest of an RS-485 system or one local group of RS-485 equipment from another.

  • Description

    RS-422 and RS-485 Optical Isolator/Repeater


    Quick Facts

  • Connect systems while protecting them from damaging ground loops.
  • Isolates one RS-485 device from the rest of an RS-485 system or one local group of RS-485 equipment from another.

  • Further Details

  • Connects point-to-point, RS-422 4-wire equipment to an RS-485 2-wire multidrop system.
  • Can be used as a repeater to expand an RS-485 system beyond 32 nodes.
  • Operates 2-wire half-duplex or 4-wire half- or full-duplex.
  • Features 12 user-selectable data rates up to 460.8 kbps.

  • This compact device links RS-422 4-wire and RS-485 2-wire systems while using optical isolation to protect equipment and lines from damaging ground loops.

    The BLACK BOX® RS-422 and RS-485 Optical Isolator/Repeater enables you to connect equipment meant for a point-to-point RS-422 4-wire interface to an RS-485 2-wire multidrop system.

    It can be used to optically isolate one piece of RS-485 equipment from the rest of an RS-485 system or one local group of RS-485 equipment from another, or it can be used as a repeater to expand an existing RS-485 system beyond the standard’s 32-node limitation.

    All data lines as well as power and ground are isolated from one side of the unit to the other. The RS-422 and RS-485 Optical Isolator/Repeater uses terminal blocks on each side of the device. It supports Transmit Data A and B, Receive Data A and B, Protective Ground, and Signal Ground.

    The RS-422 and RS-485 Optical Isolator/ Repeater operates in either 2-wire half-duplex systems or in 4-wire half-duplex or full-duplex systems. By connecting one side of the unit as a 2-wire device and one side as a 4-wire device, equipment meant for a point-to-point RS-422 interface can be connected directly to an RS-485 2-wire multidrop system.

    You get speed with the RS-422 and RS-485 Optical Isolator/Repeater, too. It features 12 user-selectable data rates, from 300 bps up to 460.8 kbps.

    NOTE: For an international version, contact our FREE Tech Support.


    Technical Specifications for RS-422 and RS-485 Optical Isolator/Repeater:

    Optical Isolation — 2000 volts RMS
    Supply Voltage — +9–14 VDC at 60 mA (idle state), 170 mA (Full duplex data)
    Surge Suppression — Working peak: 6.5 volts, bidirectional over voltage suppressor;
    Peak power dissipation: 600 watts;
    Maximum capacitance: 3000 pF
    Temperature — 32 to 158° F (0 to 70° C)
    Connectors — (2) terminal blocks
    Power — 120 VAC to 12 VDC wallmount power supply
    Size — 1"H x 2.4"W x 3.8"D (2.5 x 6.1 x 9.7 cm)
    NOTE: For an international version, contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
