Datacom > Converters

click photo to enlarge

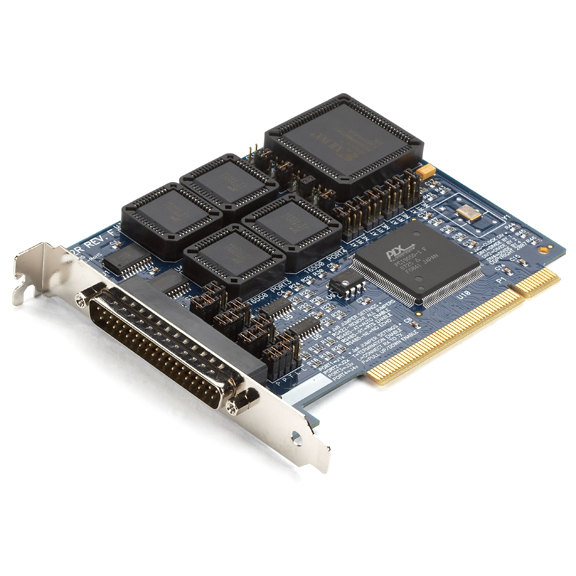

IC189C

Photo may show similar product

Other views

RS-422/485 PCI Card, 4-Port, 16850 UART

Add 460.8-kbps RS-422/485 connections via your PCI bus.

IC189C

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • PCI bus serial input/output adapters leave the ISA bus free for other uses.
  • Use the IC971C to connect up to 31 RS-485 devices to your CPU. You can also configure it for RS-530.
  • The 4-port cards enable CPU connections up to 124 RS-485 devices.
  • The 16850 UART cards support sustained speeds of 460.8 kbps.

  • Description

    RS-422/485 PCI Card, 4-Port, 16850 UART


    Quick Facts

  • PCI bus serial input/output adapters leave the ISA bus free for other uses.
  • Use the IC971C to connect up to 31 RS-485 devices to your CPU. You can also configure it for RS-530.
  • The 4-port cards enable CPU connections up to 124 RS-485 devices.
  • The 16850 UART cards support sustained speeds of 460.8 kbps.

  • Further Details

  • Use RS-422 in areas where noise immunity and high data integrity are essential.
  • Select RS-485 to capture data from peripherals in a multidrop network.
  • Autoenable circuitry enables the RS-485 transmitter during data transmission.


  • These products work with:
  • DB25 Serial Null-Modem Cable (BC00501)
  • DB25 to Terminal Block Adapter (IC980)
  • DB9 to Terminal Block Adapter (IC981)
    Questions? Contact our FREE Tech Support.

  • Technical Specifications for RS-422/485 PCI Card, 4-Port, 16850 UART:

    Buffer — IC971C, IC189C: 128-byte FIFO;
    IC141C-R2: 16-byte FIFO
    Distance (Maximum) — 4000 ft. (1219.2 m)
    Operation — 2 or 4 wires
    Operating Systems Supported — Windows®, Linux®, QNX
    Speed (Maximum) — IC971C, IC189C: 460.8 kbps (sustained);
    IC141C-R2: 115.2 kbps
    CE Approval — Yes
    Connectors — IC971C: (1) DB25 M;
    IC141C-R2, IC189C: (1) DB37 M on card, (1) DB37 F and (4) DB9 M on the included cable
    These products work with:
  • DB25 Serial Null-Modem Cable (BC00501)
  • DB25 to Terminal Block Adapter (IC980)
  • DB9 to Terminal Block Adapter (IC981)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.

  • Resources for RS-422/485 PCI Card, 4-Port, 16850 UART:


    Connect your RS-422/485 PCI Card, 4-Port, 16850 UART with:

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A warranty is included.

    Extended 1 Year Warranty Available


    Protect your purchase with an additional 1 Year Double Diamond™ warranty!
    Cost: $43.30

    Extended 3 Year Warranty Available


    Protect your purchase with an additional 3 Year Double Diamond™ warranty!
    Cost: $86.59

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most of our products come with a one- or two-year warranty. Some products—such as copper cables, manual switches, cabinets, and racks—are even guaranteed for life!

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product* for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! ?
    Tech Support Hotline 100% FREE! $$$

    What’s more, we also have a 45-day, no-questions-asked return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    Product SKU Price Quantity
    RS-422/485 PCI Card, 4-Port, 16550 UART IC141C-R2 $389.95

    RS-422/485 PCI Card, 1-Port, 16850 UART IC971C $214.95



    Add to Cart

    Price: $439.95

    Quantity Available: 1

    Quantity

    Warranty

    Total

    Shipping Info

    In Stock - orders received before 5PM ET ship same day

    Weight: 1.13 lbs.
    HxWxD: 3.3 x 6.6 x 13.5 in.
