IC1157A

Photo may show similar product

Other views

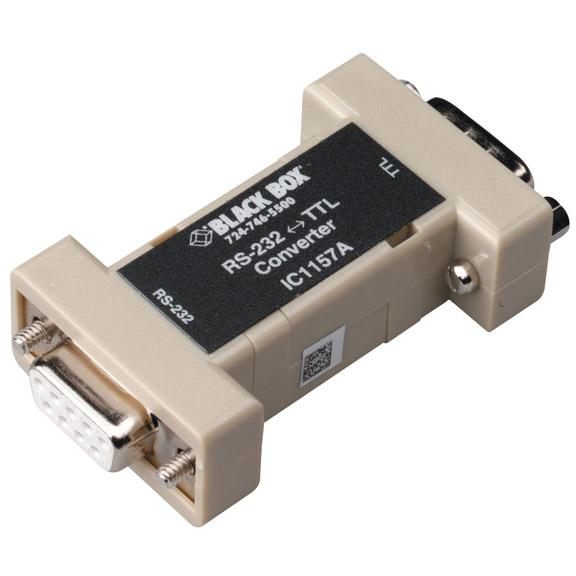

RS-232 to TTL Bidirectional Converter, DB9

This tiny converter is perfect for programmable logic controllers

IC1157A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Bidirectional conversion of RS-232 to Transistor Transistor Logic (TTL) levels.
  • Converts two channels (TX and RX) in each direction.
  • Supports speeds of up to 115 kbps.

  • Description

    RS-232 Bidirectional TTL Converter, DB9


    Quick Facts

  • Bidirectional conversion of RS-232 to Transistor Transistor Logic (TTL) levels.
  • Converts two channels (TX and RX) in each direction.
  • Supports speeds of up to 115 kbps.

  • Further Details

    The RS-232 to TTL Converter enables you to control TTL devices. The converter is fast, too—it supports serial data rates of up to 115 kbps!

    Just plug it in and you're ready to go. This tiny converter takes almost no space at all, and you can use it with virtually any micro controller or programmable logic controller that supports TTL.

    It also converts two channels (TX and RX) in each direction from RS-232 to TTL.


    Technical Specifications for RS-232 to TTL Bidirectional Converter, DB9:

    CE Approval Yes
    RoHS Yes
    Connectors RS-232: (1) DB9 F;
    TTL: (1) DB9 M
    Power From the RS-232 interface
    Size 2.2"H x 2.2"W x 0.6"D (5.6 x 5.6 x 1.5 cm)
    This product works with:
  • Premium PC/AT Modem Cables (EVMBMC)
  • Questions? Contact our FREE Tech Support

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
