Datacom > Converters


click photo to enlarge

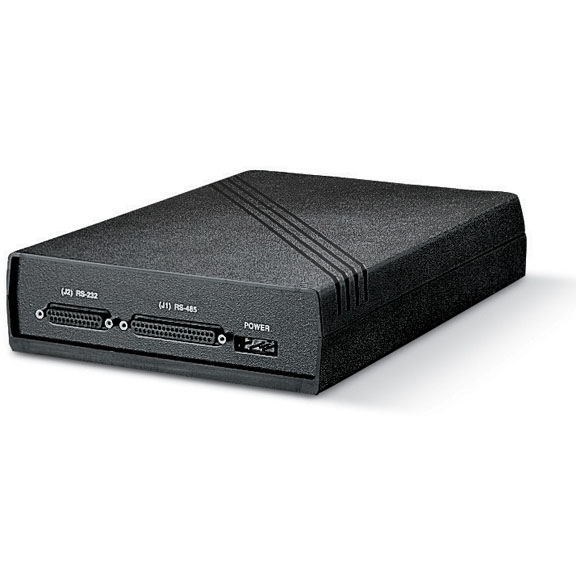

IC485A-R3

Photo may show similar product

Other views

RS-232 to RS-485/449 Interface Converter, Standalone

Synchronous RS-485/449 conversion.

IC485A-R3

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Up to 32 devices!
  • Full RS-485 sync conversion: data handshaking and clock signals.
  • Port selectable for DCE or DTE.
  • Flexible for 2- or 4-wire applications.


  • Description

    RS-232 to RS-485/449 Interface Converter, Standalone


    Quick Facts

  • Up to 32 devices!
  • Full RS-485 sync conversion: data handshaking and clock signals.
  • Port selectable for DCE or DTE.
  • Flexible for 2- or 4-wire applications.

  • Further Details

    The BLACK BOX® RS-232<–>RS485/449 Interface Converter supports full-duplex operation and hardware handshaking for up to 32 bidirectional devices. Because it’s transparent to speed and protocol, you can use it for various applications.

    It provides bidirectional synchronous or asynchronous conversion for all commonly used RS-232 and RS-485 signals.

    Each port is selectable for data terminal equipment (DTE) or data communications equipment (DCE). Both ports feature three LED indicators—DSR, CTS, and Data—that indicate the status of incoming data on each port so you can monitor activity initiated from either side of the converter.

    NOTE: For half-duplex operations, see the IC108A, IC109A-R2.

    These products work with:
    • RS-232 Cable, 25-Conductor (ECM25C)
    • DB37 Interface Cable, Male/Male (EDN37J-MM)
    • RS-449 to RS-530 Cable (EDN47J)
    Questions? Contact Tech Support.

    The IC485C-R3 also works with:
    • Interface Converter Racks (RM060, RM062A)
    Questions? Contact Tech Support.


    Technical Specifications for RS-232 to RS-485/449 Interface Converter, Standalone:

    Signals Supported All data, handshake, and timing
    Speed 64 kbps
    CE Approval 230-VAC version: IC485AE-R3
    Connectors RS-232 port: (1) DB25 F;
    RS-485 port: (1) DB37 F
    Indicators (7) LEDs: (1) Power, (2) DSR, (2) CTS, (2) Data
    Power IC485A-R3: 115 VAC, 60 Hz (230-VAC version on request);
    IC485C-R3: 11.9 watts
    Size IC485A-R3: 2.3“H x 8“W x 11.9“D (5.8 x 20.3 x 30.2 cm);
    IC485C-R3: 1.2“H x 7.5“W x 11.4“D (3 x 19 x 28.9 cm)
    Weight IC485A-R3: 1.8 lb. (0.8 kg);
    IC485C-R3: 1.3 lb. (0.6 kg)
    NOTE: For half-duplex operations, see the IC108A, IC109A-R2.

    These products work with:
    • RS-232 Cable, 25-Conductor (ECM25C)
    • DB37 Interface Cable, Male/Male (EDN37J-MM)
    • RS-449 to RS-530 Cable (EDN47J)
    Questions? Contact Tech Support.

    The IC485C-R3 also works with:
    • Interface Converter Racks (RM060, RM062A)
    Questions? Contact Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for RS-232 to RS-485/449 Interface Converter, Standalone:


    Connect your RS-232 to RS-485/449 Interface Converter, Standalone with:

    Accessory: ECM25T-0010-MM

    Standard RS-232 Low-Noise Cable, 25 Conductors—Pins 1–25, Male/Male, 10-ft. (3.0-m)

    Standard RS-232 Low-Noise Cable, 25 Conductors—Pins 1–25, M/M, 10-ft. (3.0-m)

    Accessory: EDN37T-0010-MM

    DB37 Interface Cable, Male/Male, 10-ft. (3.0-m)

    DB37 Interface Cable, Male/Male, 10-ft. (3.0-m)
