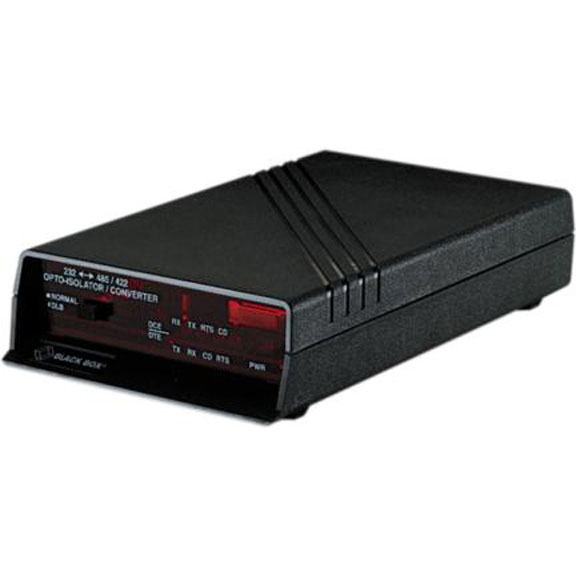

IC109A-R3

Photo may show similar product

Other views

RS-232 to RS-485/422 Bidirectional Converter Plus with Opto-Isolation, Standalone

This RS-232 Converter features opto-isolation to guard against power surges.

IC109A-R3

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Transmits data up to 4000 feet (1219.2 m) and at speeds up to 115.2 kbps. (Autotransmitter enable is available up to 64 kbps.)
  • Built-in opto-isolators protect against power surges.
  • Operates in multipoint applications; 2- or 4-wire operation, full- or half-duplex, async (data leads) only.


  • Description

    RS-232 to RS-485/422 Bidirectional Converter Plus with Opto-Isolation, Standalone


    Quick Facts

  • Transmits data up to 4000 feet (1219.2 m) and at speeds up to 115.2 kbps. (Autotransmitter enable is available up to 64 kbps.)
  • Built-in opto-isolators protect against power surges.
  • Operates in multipoint applications; 2- or 4-wire operation, full- or half-duplex, async (data leads) only.

  • Further Details

  • Selectable RTS-CTS turnaround delay and loopback test feature.
  • Features a terminate/unterminate option.
  • Transmitter is always on or controlled by data or RTS.


  • How fast do you want to send data? If your PC has a 16550 UART chip, you can send data at 115.2 kbps with the RS-232 to RS-485/422 Converter Plus! It has a line bias feature that prevents it from receiving line noise as it sends or receives signals. The converter works in all popular 2- or 4-wire applications. It also comes with built-in opto-isolation to guard against power surges.

    The Converter includes (1) 6-ft. DB25 Male/DB9 Female Cable (EVMBMC-0006) and (1) DB9 Male/DB25 Female Adapter (FA521A-R2).


    Technical Specifications for RS-232 to RS-485/422 Bidirectional Converter Plus with Opto-Isolation, Standalone :

    Operation 4-wire, half- or full-duplex; 2-wire half-duplex
    ProtocolAsync
    CE Approval Yes
    Connectors (1) DB25 F (DTE or DCE), (1) 4-screw terminal
    Power 115 VAC, 60 Hz (230-VAC, 50-Hz on request)
    Size 1.8"H x 5.5"W x 8.4"D (4.6 x 14 x 21.3 cm);


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for RS-232 to RS-485/422 Bidirectional Converter Plus with Opto-Isolation, Standalone :

    Manuals

    • RS-232 to RS-485/422 Bidirectional Converter Plus Rackmount Card
      Installation and User Guide (Jan-05)

    Product Data Sheets


    Connect your RS-232 to RS-485/422 Bidirectional Converter Plus with Opto-Isolation, Standalone with:

    Accessory: IC108A

    RS-232 to RS-485/422 Bidirectional Converter Plus, Standalone

    RS-232 to RS-485/422 Bidirectional Converter Plus, Standalone

    Accessory: IC108C

    RS-232 to RS-485/422 Bidirectional Converter Plus Rackmount Card

    RS-232 to RS-485/422 Bidirectional Converter Plus Rackmount Card

    Accessory: IC109C

    RS-232 to RS-485/422 Bidirectional Converter Plus with Opto-Isolation Rackmount Card

    RS-232 to RS-485/422 Bidirectional Converter Plus with Opto-Isolation Rackmount Card
