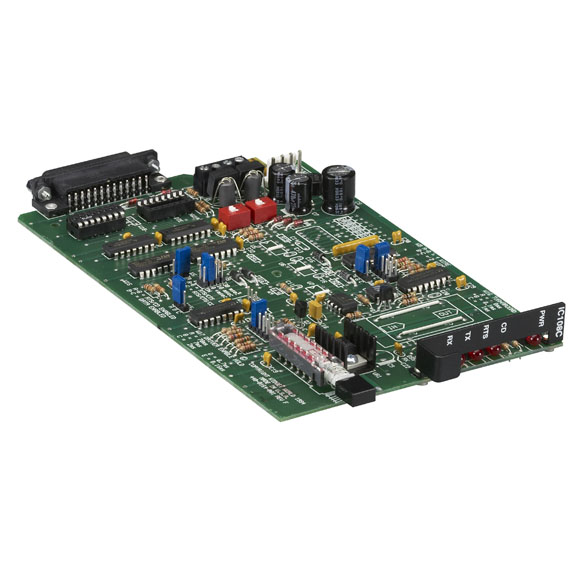

IC108C

Photo may show similar product

Other views

RS-232 to RS-485/422 Bidirectional Converter Plus Rackmount Card

Transmit data up to 4000 feet at speeds up to 64 kbps!

IC108C

Extended Double Diamond™ Warranty Available (3 Additional Year)

Product Highlights

  • Transmits data up to 4000 feet (1219.2 m) and at speeds up to 64 kbps.
  • Operates in multipoint applications; 2- or 4-wire operation, full- or half-duplex, async (data leads) only.
  • Selectable RTS-CTS turnaround delay and loopback test feature.


  • Further Details

  • Features a terminate/unterminate option.
  • Transmitter is always on or controlled by data or RTS.

  • The RS-232 to RS-422 Bidirectional Converter supports 64-kbps speeds and has a jumper transmitter that's always on or controlled by RTS.

    Operation 4-wire, half- or full-duplex; 2-wire half-duplex
    Protocol Asynchronous
    CE Approval Yes
    Connectors (1) DB25 F (DTE or DCE), (1) 4-screw terminal
    Power 115 VAC, 60 Hz (230-VAC, 50-Hz on request)
    Size 4.7"H x 0.6"W x 7.4"D (11.9 x 1.5 x 18.8 cm);


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.

    Manuals

    • RS-232 to RS-485/422 Bidirectional Converter Plus Rackmount Card
      Installation and User Guide (Apr-03)
    • RS-232 to RS-485/422 Bidirectional Converter Plus Rackmount Card
      Installation and User Guide (Apr-02)
    • RS-232 to RS-485/422 Bidirectional Converter Plus Rackmount Card
      Installation and User Guide (Feb-98)
    • RS-232 to RS-485/422 Bidirectional Converter Plus Rackmount Card
      Installation and User Guide (Jan-05)

    Product Data Sheets


    Accessory: IC108A

    RS-232 to RS-485/422 Bidirectional Converter Plus, Standalone

    RS-232 to RS-485/422 Bidirectional Converter Plus, Standalone

    Accessory: IC109A-R3

    RS-232 to RS-485/422 Bidirectional Converter Plus with Opto-Isolation, Standalone

    RS-232 to RS-485/422 Bidirectional Converter Plus with Opto-Isolation, Standalone

    Accessory: IC109C

    RS-232 to RS-485/422 Bidirectional Converter Plus with Opto-Isolation Rackmount Card

    RS-232 to RS-485/422 Bidirectional Converter Plus with Opto-Isolation Rackmount Card

    Double Diamond Warranty
    Extended Double Diamond™ Warranty Available (3 Additional Year)
    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    The RS-232 to RS-485/422 Bidirectional Converter Plus Rackmount Card comes with a standard 1 Year warranty already included.

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!*

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product** for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Warranty subject to certain exclusions and limitations
    ** Certain products may not be eligible.

    What’s more, we also have a 45-day return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.



    Add to Cart

    Price: $288.85

    On Back Order

    Quantity

    Warranty

    Total

    Shipping Info

    Weight: 0.8 lbs.
    HxWxD: 1.5 x 5.4 x 9.1 in.
