Industrial > Converters

click photo to enlarge

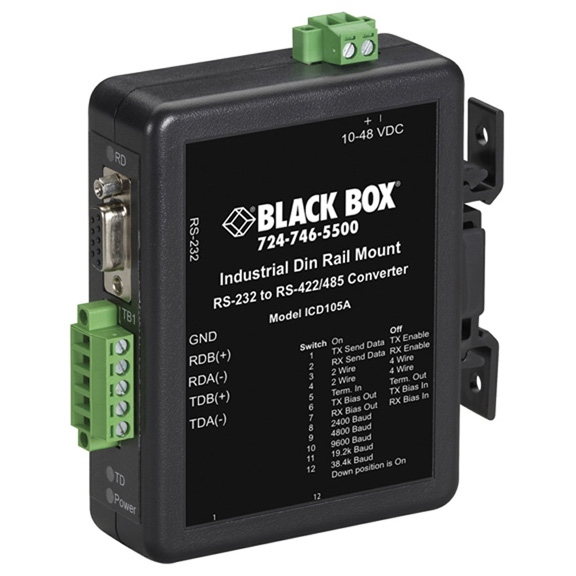

ICD105A

Photo may show similar product

Other views

RS-232 to RS-422/RS-485 DIN Rail Converter

Your industrial communications can handle temperature extremes!

ICD105A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • UL® approved.
  • Three-way isolation, 2000-V input/output.
  • Operates from -40° to +185° F (-40 to +85° C).
  • Converts unbalanced half- or full-duplex RS-232 signals to balanced full-duplex RS-422 or 2-wire half- or 4-wire full-duplex RS-485.
  • Extends communications up to 4000 feet (1219.2 m).

  • Description

    Industrial RS-232 to RS-422/RS-485 DIN Rail Converter


    Quick Facts

  • UL® approved.
  • Three-way isolation, 2000-V input/output.
  • Operates from -40° to +185° F (-40 to +85° C).
  • Converts unbalanced half- or full-duplex RS-232 signals to balanced full-duplex RS-422 or 2-wire half- or 4-wire full-duplex RS-485.
  • Extends communications up to 4000 feet (1219.2 m).

  • Further Details

  • Wide range of data rates.
  • Features addressing up to 32 nodes.
  • Modbus ASCII or RTU compatible.
  • Automatic Send Data Control eliminates the need for driver software.
  • Removable terminal blocks.
  • Conveniently mounts on optional DIN Rails.


  • Technical Specifications for RS-232 to RS-422/RS-485 DIN Rail Converter:

    Distance (Maximum) — 4000 ft. (1219.2 m)
    Operating Environment — Temperature: -40° to +185° F (-40 to +85° C);
    Humidity: Up to 95% noncondensing
    Operation — RS-232: Half- or full-duplex;
    RS-422: Full-duplex;
    RS-485: 2-wire half-duplex or 4-wire full-duplex
    Speed — 1200 bps to 115.2 kbps;
    2400 bps to 38.4 kbps, switch-selectable
    CE Approval — Yes
    Connectors — (1) 5-position terminal block, (1) DB9 F (DCE)
    Power — +10 to -48 VDC (±20%) or from optional DIN Rail 12-VDC Power Supply (PSD100)
    Size — 4.9"H x 4.1"W x 1.3"D (12.4 x 10.4 x 3.3 cm)
    This product works with:
  • DIN Rail (DR100)
  • DIN Rail 12-VDC Power Supply (PSD100)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.

  • Resources for RS-232 to RS-422/RS-485 DIN Rail Converter:


    Connect your RS-232 to RS-422/RS-485 DIN Rail Converter with:

    Accessory: BC00200

    DB9 Serial Extension Cable, Male/Female, 6-ft. (1.8-m)

    DB9 Serial Extension Cable, Male/Female, 6-ft. (1.8-m)

    Accessory: PSD100-R2

    DIN Rail 12-VDC Power Supply

    DIN Rail 12-VDC Power Supply

    Accessory: FA520A-R5

    Serial AT Adapter, DB9 Female to DB25 Male

    Serial AT Adapter, DB9 Female to DB25 Male
