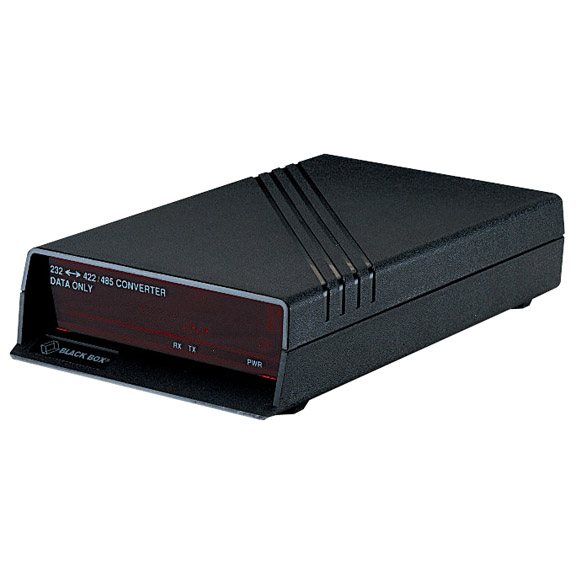

RS-232 to RS-422 Converter, Standalone

Simple async RS-232 to RS-422 conversion.

IC107A-R3

Extended Double Diamond™ Warranty Available (3 Additional Year)

Product Highlights

  • Our basic 64-kbps converter.


  • Further Details

  • Transmits data up to 4000 feet (1219.2 m).
  • Full-duplex operation over 4-wire lines.
  • Async (data leads) only.

  • Our popular RS-232 to RS-422 Converter provides reliable conversion at speeds up to 64 kbps. You can transmit data up to 4000 feet (1219.2 m) on the RS-422/485 interface—over 4-wire lines in full-duplex operation.

    In RS-485 mode, select either RTS or DTR to enable the driver. Or set the driver so that it's always enabled.

    The converter features DIP switches instead of DIP shunts for easy setup. It's intended for use with data signals, so if you need a converter that supports handshake and clocking leads, our techs recommend one of the RS-232 to RS-422/RS-449 Converters (IC456A-R5, IC456C-R5) in Related Items.

    This product includes:
  • (1) converter and attached power supply
  • (1) manual


  • Distance 4000 ft. (1219.2 m) maximum
    Operation 4-wire, full-duplex only
    Speed 64 kbps maximum
    Connectors (1) DB25 F, (1) 4-screw terminal block
    Power 115 VAC, 60 Hz (230-VAC, 50-Hz version on request)
    Dimensions 1.8"H x 5.5"W x 8.4"D (4.6 x 14 x 21.3 cm)

    NOTE: To support handshake and clocking leads, see the RS-232<–>RS-422/449 Converters in Related Items.

    This product works with:
  • RS-232 Cable, 25-Conductor (ECM25T)
  • AT Modem Cable (EVMBMC)
  • Questions? Contact our FREE Tech Support.

    This product includes:
  • (1) converter and attached power supply
  • (1) manual


  • NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.

    Manuals

    • RS-232 to RS-422 Converter User Manual
      User Manual for the IC107A-R3 & IC107C-R3 (Version 1)

    Product Data Sheets

    Black Box Explains


    Accessory: ECM25T-0002-MM

    Standard RS-232 Low-Noise Cable, Male/Male, 25 Conductors—Pins 1–25, 2-ft. (0.6-m)

    Standard RS-232 Low-Noise Cable, 25 Conductors—Pins 1–25, 2-ft. (0.6-m), M/M

    Accessory: EVNBMC

    Premium AT Modem Cable, DB9 Female/DB25 Male, 9-Conductor, 24 AWG, Custom Lengths

    Premium AT Modem Cable, DB9 Female/DB25 Male, 9-Conductor, 24 AWG, Custom Lengths

    Accessory: IC456A-R5

    RS-232 to RS-422/449 Interface Converter, Standalone

    RS-232 to RS-422/449 Interface Converter, Standalone

    Accessory: IC456C-R5

    RS-232 to RS-422/449 Interface Converter Rackmount Card

    RS-232 to RS-422/449 Interface Converter Rackmount Card
