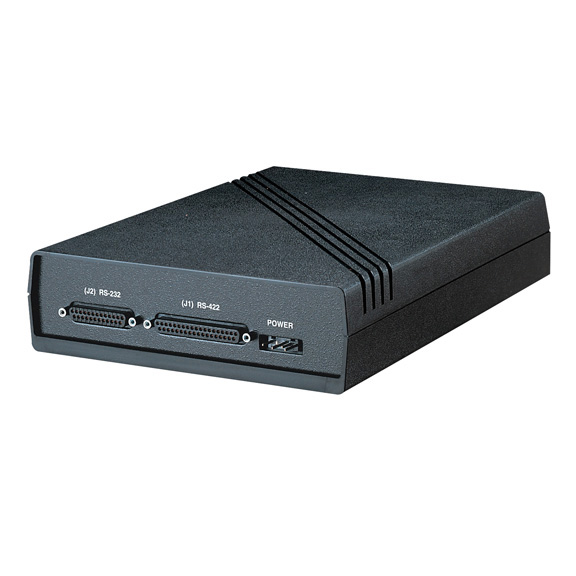

IC456A-R5

Photo may show similar product

Other views

RS-232 to RS-422/449 Interface Converter, Standalone

Sync or async RS-422 conversion.

IC456A-R5

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • The BLACK BOX® RS-232↔RS-422/449 Interface Converter is ideal for converting sync and async RS-422 interfaces to RS-232.
  • Full RS-422 data conversion: data handshaking and clock signal.
  • Speeds up to 64 kbps.


  • Description

    RS-232 to RS-422/449 Interface Converter, Standalone


    Quick Facts

  • The BLACK BOX® RS-232↔RS-422/449 Interface Converter is ideal for converting sync and async RS-422 interfaces to RS-232.
  • Full RS-422 data conversion: data handshaking and clock signal.
  • Speeds up to 64 kbps.

  • Further Details

  • Converts all commonly used signals for RS-232 to RS-422/RS-449.
  • Configuring is as simple as installing a set of shorting jumpers.
  • Sync or async.

  • The BLACK BOX® RS-232<–>RS-422/449 Interface Converter is ideal for converting sync and async RS-422 interfaces to RS-232. It converts all commonly used signals for RS-232 to RS-422/RS-449 bidirectionally.

    Setup is super easy, too. To configure, just move the jumpers. Set the converter for RS-422 data communications equipment (DCE) to RS-232 data terminal equipment (DTE) or RS-232 DCE to RS-422 DTE.

    The converter is designed to operate with one port configured as DTE and the other as DCE. However, it’s not designed to function with both ports configured as DTE or DCE when operating in sync mode.

    What's included:
    • (1) 5-ft. (1.5-m) RS-232 cable, 25-conductor (ECM25C-0005)
    • (1) DB9 female to DB25 male serial adapter (FA520A-R2)

    This product works with:
    • DB37 Interface Cable (EDN37J)
    • RS-449 to RS-530 Cable (EDN47J)
    • Interface Converter Racks (RM060, RM062A)
    Questions? Contact our FREE Tech Support.


    Technical Specifications for RS-232 to RS-422/449 Interface Converter, Standalone:

    Signals Supported All data, handshake, and timing
    Connectors (1) DB25 F (DCE or DTE), (1) DB37 F (DCE or DTE)
    Power 115 VAC, 60 Hz (230-VAC, 50-Hz version on request)
    Size Standalone: 2.3"H x 8"W x 11.9"D (5.8 x 20.3 x 30.2 cm);
    Card: 1.2"H x 7.5"W x 11.4"D (3 x 19.1 x 29 cm)
    Weight Standalone: 2 lb. (0.9 kg);
    Card: 0.6 lb. (0.3 kg)
    This product works with:
    • DB37 Interface Cable (EDN37J)
    • RS-449 to RS-530 Cable (EDN47J)
    • Interface Converter Racks (RM060, RM062A)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
