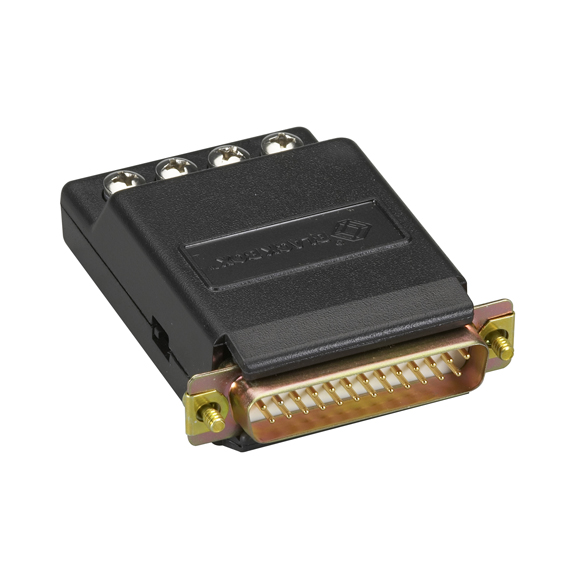

CL412A-M

Photo may show similar product

Other views

RS-232 to Current-Loop Interface-Powered Bidirectional Converter, Male

Use in industrial applications where electrical interference could be a problem.

CL412A-M

Extended Double Diamond™ Warranty Available (3 Additional Year)

Product Highlights

  • Connect your Current Loop equipment to an async RS-232 device.
  • Features a 4-screw terminal block for use with twisted-pair cable.
  • Works in passive applications.


  • Further Details

    The RS-232 to Current Loop Interface-Powered Bidirectional Converter connects to either a modem or mux. Just flip the switch to attach a terminal or computer. Your RS-232 devices are protected from dangerous transients, too. Opto-isolators in both the Transmit and Receive loops keep out electrical interference.

    Operation Passive, unipolar 20-mA Current Loop; full-duplex only
    CE Approval Yes
    Interface RS-232 (DTE/DCE switch selectable);
    20-mA Current Loop
    Power Unit: From the EIA interface (Pin 6 or 20), +12 VDC from the RS-232 device
    Size 0.6"H x 1.6"W x 2.8"D (1.5 x 4.1 x 7.1 cm)
    Weight 0.2 lb. (0.1 kg)
    This product works with:
  • Category 3 Bulk Cable, 2-Pair (EYN712A)
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.

    Accessory: CL050-C

    RS-232 to Current-Loop Interface Bidirectional Converter (232/CL-E), AC-Powered, Active or Passive, Rackmount Card

    RS-232 to Current-Loop Interface Bidirectional Converter (232/CL-E), AC-Powered, Active or Passive, Rackmount Card

    Accessory: CL050A-R3

    RS-232 to Current-Loop Interface Bidirectional Converter (232/CL-E), AC-Powered, Active or Passive, Standalone

    RS-232 to Current-Loop Interface Bidirectional Converter (232/CL-E), AC-Powered, Active or Passive, Standalone

    Accessory: CL412A-F

    RS-232 to Current-Loop Interface-Powered Bidirectional Converter, Female

    RS-232 to Current-Loop Interface-Powered Bidirectional Converter, Female
