Datacom > Converters

click photo to enlarge

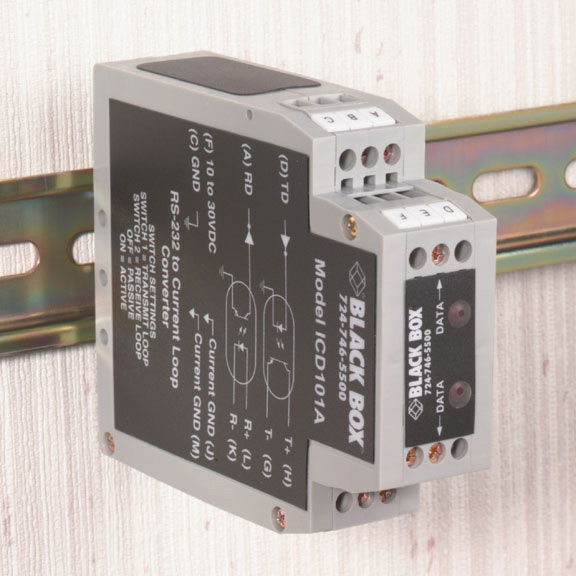

ICD101A

Photo may show similar product

Other views

RS-232 to Current Loop DIN Rail Converter with Opto-Isolation

Put your industrial communications on the right track with this convenient DIN rail converter.

ICD101A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Has one 20-mA transmit loop and one 20-mA receive loop.
  • Both signals feature 1000-VDC opto-isolation to protect against surges and ground loops.
  • Both loops can be set as active or passive. When set to active, an isolated 20-mA current is supplied to each loop.
  • Top speed of 19.2 kbps.

  • Description

    RS-232 to Current Loop DIN Rail Converter with Opto-Isolation


    Quick Facts

  • Has one 20-mA transmit loop and one 20-mA receive loop.
  • Both signals feature 1000-VDC opto-isolation to protect against surges and ground loops.
  • Both loops can be set as active or passive. When set to active, an isolated 20-mA current is supplied to each loop.
  • Top speed of 19.2 kbps.

  • Further Details



    Technical Specifications for RS-232 to Current Loop DIN Rail Converter with Opto-Isolation:

    Distance (Maximum) — 2000 ft. (609.6 m)
    Isolation — 1000 VDC for 1 second
    Operating Environment — Temperature: 32 to 176° F (0 to 80° C);
    Humidity: Up to 95% noncondensing
    Operation — RS-232: Half- or full-duplex;
    Current Loop: 20 mA, active or passive
    Speed — Up to 19.2 kbps
    CE Approval — Yes
    Connectors — (2) 6-position terminal blocks
    Indicators — (2) LEDs: Data flow direction
    Power — 10–30 VDC, 100 mA
    Size — 0.9"H x 2.9"W x 3.9"D (2.3 x 7.4 x 9.9 cm)
    NOTE: To power as many as six converters, order our optional DIN Rail 12-VDC Power Supply (PSD100).

    This product works with:
  • DIN Rail (DR100)
  • DIN Rail 12-VDC Power Supply (PSD100) to power up to six converters
  • DB25 to Terminal Block Adapter (IC980)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.

  • Resources for RS-232 to Current Loop DIN Rail Converter with Opto-Isolation:


    Connect your RS-232 to Current Loop DIN Rail Converter with Opto-Isolation with:

    Accessory: BC00200

    DB9 Serial Extension Cable, Male/Female, 6-ft. (1.8-m)

    DB9 Serial Extension Cable, Male/Female, 6-ft. (1.8-m)

    Accessory: PSD100-R2

    DIN Rail 12-VDC Power Supply

    DIN Rail 12-VDC Power Supply

    Accessory: IC980

    DB25 to Terminal Block Adapter

    DB25 to Terminal Block Adapter

    Accessory: ERN24A-0500

    Individually Shielded Low-Capacitance Cable, Extra Distance, PVC Jacket, 24 Conductors (12 Pairs), 500-ft. (152.4-m)

    Individually Shielded Low-Capacitance Cable, Extra Distance, PVC Jacket, 24 Conductors (12 Pairs), 500-ft. (152.4-m)
