IC457A-M

Photo may show similar product

Other views

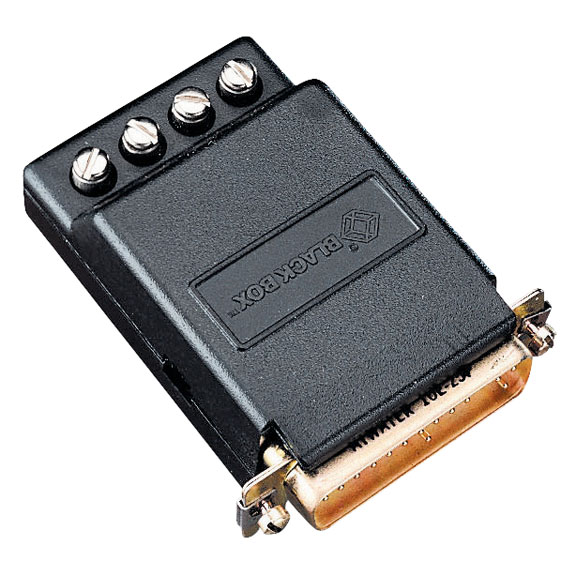

RS-232 to 422 Bidirectional Opto-Isolator, Male

Send your data up to 19.2 kbps with opto isolation.

IC457A-M

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Bidirectionally converts RS-232/RS-422 signals.
  • Prevents damaging ground loops when transmitting between buildings.
  • Stops ground loops by transforming electrical signals into fiber optic light pulses.

  • Description

    RS-232 to 422 Bidirectional Opto-Isolator, Male


    Quick Facts

  • Bidirectionally converts RS-232/RS-422 signals.
  • Prevents damaging ground loops when transmitting between buildings.
  • Stops ground loops by transforming electrical signals into fiber optic light pulses.

  • Further Details

    Transmitting data between buildings? You'd better guard against damaging ground loops. Ground loops occur when you link devices powered by separately grounded AC power sources. But a Black Box® Opto-Isolator stops them by internally transforming electrical signals into fiber optic light pulses. This "air gap" breaks the copper connection between the two AC systems, preventing potential equipment damage while enabling data to flow uninterrupted.

    NOTE: Cannot be used in pairs.

    This product works with:
  • CAT5 100-MHz Solid-Conductor Bulk Cable, 2-Pair (EYN717A)
    Questions? Contact our FREE Tech Support.

  • Technical Specifications for RS-232 to 422 Bidirectional Opto-Isolator, Male:

    Operation — 4-wire, full-duplex, point-to-point
    Protocol — Asynchronous
    Speed — Transparent up to 19.2 kbps
    CE Approval — Yes
    Connectors — RS-232: (1) DB25 F;
    RS-422: (1) 4-screw terminal block
    Power — From both RS-232 and RS-422 interfaces
    Size — 0.7"H x 2"W x 2.7"D (1.8 x 5.1 x 6.9 cm)
    Weight — 0.1 lb. (<0.1 kg)
    NOTE: Cannot be used in pairs.

    This product works with:
  • CAT5 100-MHz Solid-Conductor Bulk Cable, 2-Pair (EYN717A)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.

  • Resources for RS-232 to 422 Bidirectional Opto-Isolator, Male:

    Product Data Sheets


    Connect your RS-232 to 422 Bidirectional Opto-Isolator, Male with:

    Accessory: EYN717A

    CAT5 Unshielded Solid, 100-MHz Bulk Cable, 24 AWG, 2-Pair, PVC, Gray, Custom Lengths

    CAT5 Unshielded Solid, 100-MHz Bulk Cable, 24 AWG, 2-Pair, PVC, Gray, Custom Lengths
