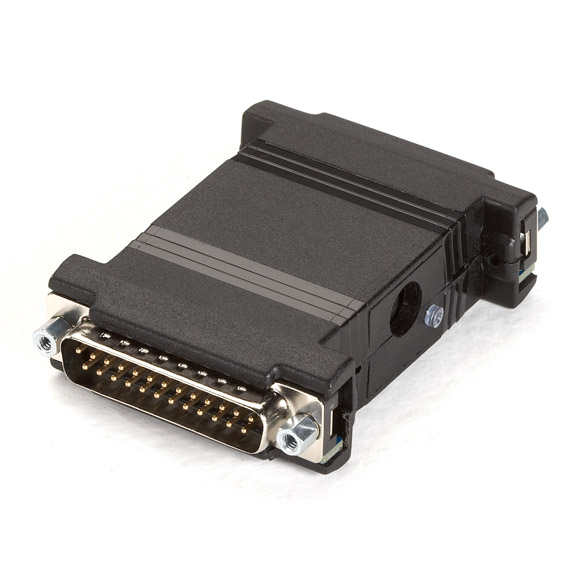

ME001A-R2

Photo may show similar product

Other views

RS-232 Serial Line Booster

Put your printer where you need it.

ME001A-R2

Extended Double Diamond™ Warranty Available (3 Additional Year)

Product Highlights

  • Get the freedom to put your printer where it's convenient for you!
  • Boosts serial transmission up to 100 feet (30.4 m) of cable, provided conditions are similar over the entire run and the booster is in the center.
  • Regenerates weak RS-232 signals.
  • Cuts the signal-to-noise ratio in half.
  • Data and data-format transparent.


  • Further Details

    If your printer is too far away, you may find the transmission from your PC is getting too weak to be recognized by the device on the other side of the line. That’s when you should install the BLACK BOX® RS-232 Serial Line Booster. The booster regenerates the signal at the correct RS-232 level. You get strong transmissions and the convenience of putting the printer where you want it.

    The RS-232 Serial Line Booster effectively doubles the range of RS-232 communications by actively receiving and retransmitting the 12 most common signals of the serial RS-232 interface.

    Normally, RS-232 communications are limited to 50 feet (15.2 m). But with the RS-232 Line Booster, your data can travel on up to 100 or even 150 feet (30.4 or 45.7 m) of cable if environmental conditions are similar over the entire cable and the booster is in the center of the run. The booster also halves the signal-to-noise ratio, and it’s data and data-format transparent. It can be powered from the interface (Pins 9 and 10) or from its wallmount transformer.

    NOTE: The booster should be installed in the middle of the line, not at the beginning or end.

    This product works with:
    • Standard RS-232 Low-Noise Cable, 25-Conductor (ECM25C)
    • AT® Serial Printer Cable (EVMBPC)
    • DB25 Female/Female Gender Changer (FA412-R2)
    Questions? Contact our FREE Tech Support.

    Compliance — CSA LR68807; UL® 81J1 E81356
    Leads Supported — Pins 2–10, 15, 17, 20–22, 24
    Operating Environment — Temperature: 32 to 114° F (0 to 45° C);
    Humidity: 0 to 95%, noncondensing
    Operation — Full-duplex, point-to-point
    Protocol — Serial async or sync
    Speed (Maximum) — 19.2 kbps
    Interface — RS-232
    Connectors — (1) DB25 F, (1) DB25 M
    Power — From Pins 9 and 10 or 115-VAC, 60-Hz, 12-W wallmount transformer (recommended)
    Size — 1.1"H x 3.5"W x 4.5"D (2.8 x 8.9 x 11.4 cm)
    Weight — 4 lb. (1.8 kg)
    NOTE: The booster should be installed in the middle of the line, not at the beginning or end.

    This product works with:
    • Standard RS-232 Low-Noise Cable, 25-Conductor (ECM25C)
    • AT® Serial Printer Cable (EVMBPC)
    • DB25 Female/Female Gender Changer (FA412-R2)
    Questions? Contact our FREE Tech Support.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.

    Application Diagrams


    Accessory: BC09000-0006-MF

    PC/XT Serial Printer Cable, DB25 Male/DB25 Female, 6-ft. (1.8-m)

    PC/XT Serial Printer Cable, DB25 Male/DB25 Female, 6-ft. (1.8-m)

    Accessory: ECM25T-0010-MM

    Standard RS-232 Low-Noise Cable, 25 Conductors—Pins 1–25, Male/Male, 10-ft. (3.0-m)

    Standard RS-232 Low-Noise Cable, 25 Conductors—Pins 1–25, M/M, 10-ft. (3.0-m)
