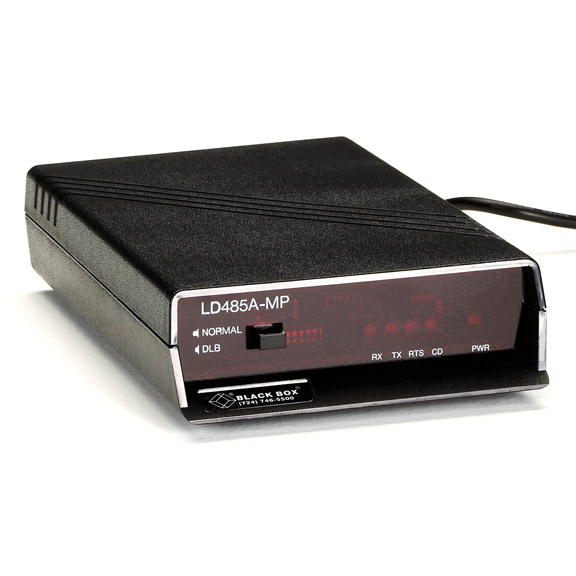

RS-232/RS-485 Multipoint Line Drivers (LD485A-MP), Standalone

Up to 64 drops for your RS-232 async multipoint applications.

ME836A-R5

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Daisychain and run up to 64 devices with a single controller.
  • Drivers can be enabled by data or RTS control.
  • Point-to-point or multipoint applications.

  • Description

    RS-232/RS-485 Multipoint Line Driver (LD485A-MP), Standalone Unit


    Quick Facts

  • Daisychain and run up to 64 devices with a single controller.
  • Drivers can be enabled by data or RTS control.
  • Point-to-point or multipoint applications.

  • Further Details

    This RS-232/RS-485 Multipoint Line Driver is basically an interface converter that operates like a short-haul modem, enabling your data to travel across much longer distances than is normally possible. Its big advantage is running multipoint and point-to-point applications. In fact, you can daisychain and run up to 64 devices with a single controller at speeds of up to 64 kbps!

    You can also attach non-RTS equipment. With Driver Enable Selection, the driver senses incoming data and connects the host automatically.


    Technical Specifications for RS-232/RS-485 Multipoint Line Drivers (LD485A-MP), Standalone :

    Distance (Maximum) — 4 mi. (2.5 km)
    Operation — 4-wire full-duplex, 2-wire half-duplex, point-to-point or multipoint
    Protocol — Asynchronous
    Speed (Maximum) — 64 kbps
    Interface — RS-232, RS-485
    Connectors — (1) DB25 F, (1) 4-screw terminal block
    Power — 115 VAC, 60 Hz (230-VAC, 50-Hz version on request)
    Size — 1.5"H x 5.5"W x 8.5"D (3.8 x 14 x 21.6 cm)
    These products work with:
    • CAT5 100-MHz Solid-Conductor Bulk Cable, 2-Pair (EYN717A)

    The ME836C-R5 also works with:
    • 16-Card Rack (RM005)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for RS-232/RS-485 Multipoint Line Drivers (LD485A-MP), Standalone :


    Connect your RS-232/RS-485 Multipoint Line Drivers (LD485A-MP), Standalone with:

    Accessory: EYN717A

    CAT5 Unshielded Solid, 100-MHz Bulk Cable, 24 AWG, 2-Pair, PVC, Gray, Custom Lengths

    CAT5 Unshielded Solid, 100-MHz Bulk Cable, 24 AWG, 2-Pair, PVC, Gray, Custom Lengths
