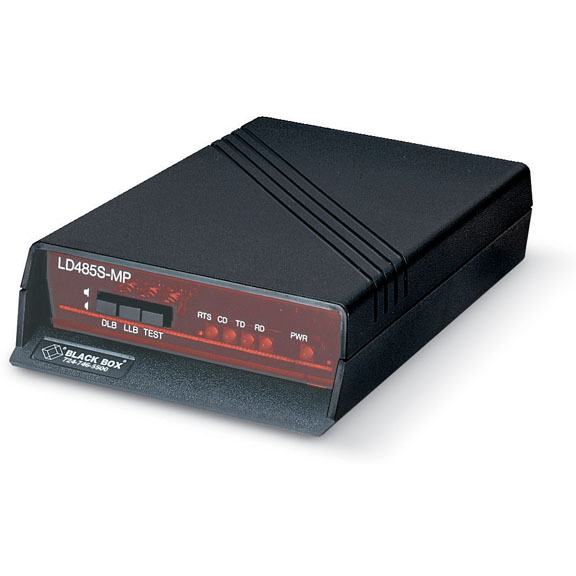

RS-232/RS-485 Multipoint Line Driver (LD485S-MP), Standalone

Dispatch your sync data to up to 64 locations.

ME742A-R5

Extended Double Diamond™ Warranty Available (3 Additional Year)

Product Highlights

  • Reliable in high-interference environments.
  • Multipoint up to 64 drops.
  • Data speeds up to 128 kbps.


  • Further Details

    With selectable speeds up to 128 kbps, this line driver provides synchronous data communications over 2- or 4-wire lines and, as part of a multidrop network, can support up to 64 devices.

    Your data travels at up to 128 kbps with the BLACK BOX® RS-232/RS-485 Multipoint Line Driver (LD485S-MP) to up to 64 locations!

    With its RS-485 line interface, this driver delivers reliable signals, even in the most demanding shop environments—conveyor belts, time clocks, and more.

    And the LD485S-MP is just as reliable in tail circuits, too. You get less jitter in Receive clocking, a range of Transmit-clock select options, and delayed RTS/CTS settings.

    Front-panel LEDs indicate flow-control status. And three front-panel pushbuttons perform line and digital loopback testing.

    Choose a standalone model or a rackmount card. Use the card with our 16-Card Interface Converter Rack (RM005).

    This product works with:
    • GigaBase® 350 CAT5e, 350-MHz Bulk Cables, 4-Pair (EYN851A)
    • 16-Card Interface Converter Rack (RM005)
    Questions? Contact our FREE Tech Support.

    Clocking Internal, external, receive
    Distance (Maximum) 4 mi. (6.4 km)
    Operation 4-wire half- or full-duplex, 2-wire half-duplex
    Protocol Synchronous
    Speed (Maximum) 128 kbps
    CE Approval 230-VAC version: ME742AE-R3
    Connectors (1) DB25 F, (1) 4-screw terminal
    Power 115 VAC, 60 Hz
    Size 1.8"H x 5.5"W x 8.5"D (4.6 x 14 x 21.6 cm)
    Weight 1 lb. (0.5 kg)
    This product works with:
    • GigaBase® 350 CAT5e, 350-MHz Bulk Cables, 4-Pair (EYN851A)
    • 16-Card Interface Converter Rack (RM005)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.

    Double Diamond Warranty
    Extended Double Diamond™ Warranty Available (3 Additional Year)
    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    The RS-232/RS-485 Multipoint Line Driver (LD485S-MP), Standalone comes with a standard 1 Year warranty already included.

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!*

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product** for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Warranty subject to certain exclusions and limitations
    ** Certain products may not be eligible.

    What’s more, we also have a 45-day return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.
