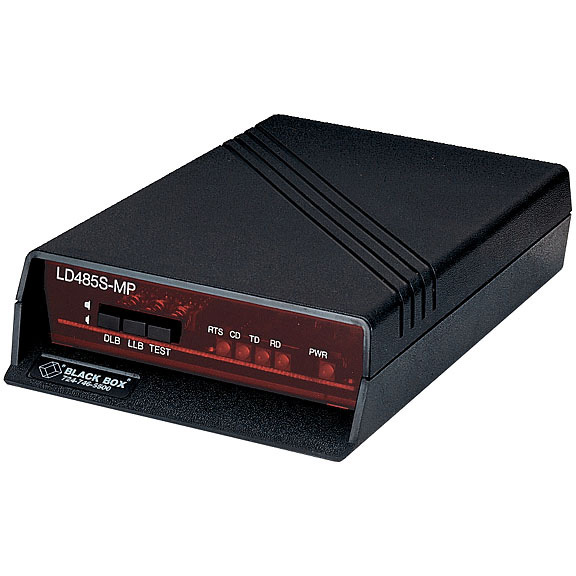

ME742C-R5

Photo may show similar product

Other views

RS-232/RS-485 Multipoint Line Driver (LD485S-MP), Card

Dispatch your sync data to up to 64 locations.

ME742C-R5

Extended Double Diamond™ Warranty Available
(1 Year)

Product Highlights

  • Reliable in high-interference environments.
  • Multipoint up to
    64 drops.
  • Data speeds up to
    128 kbps.

  • Description

    RS-232/RS-485 Multipoint Line Driver (LD485S-MP), Card


    Quick Facts

  • Reliable in high-interference environments.
  • Multipoint up to
    64 drops.
  • Data speeds up to
    128 kbps.

  • Further Details

    Your data travels at up to 128 kbps with the BLACK BOX® RS-232/RS-485 Multipoint Line Driver (LD485S-MP) to up to 64 locations!

    With its RS-485 line interface, this driver delivers reliable signals, even in the most demanding shop environments—conveyor belts, time clocks, and more.

    And the LD485S-MP is just as reliable in tail circuits, too. You get less jitter in Receive clocking, a range of Transmit-clock select options, and delayed RTS/CTS settings.

    Front-panel LEDs indicate flow-control status. And three front-panel pushbuttons perform line and digital loopback testing.

    Choose a standalone model or a rackmount card. Use the card with our 16-Card Interface Converter Rack (RM005).


    Technical Specifications for RS-232/RS-485 Multipoint Line Driver (LD485S-MP), Card:

    Clocking Internal, external, receive
    Distance (Maximum) 4 mi. (6.4 km)
    Operation 4-wire half- or full-duplex, 2-wire half-duplex
    Protocol Synchronous
    Speed (Maximum) 128 kbps
    CE Approval 230-VAC version: ME742AE-R3
    Connectors (1) DB25 F, (1) 4-screw terminal
    Power 115 VAC, 60 Hz
    Size 1.8"H x 5.5"W x 8.5"D (4.6 x 14 x 21.6 cm)
    Weight 1 lb. (0.5 kg)
    These products work with:
    • GigaBase® 350 CAT5e, 350-MHz Bulk Cables, 4-Pair (EYN851A)
    Questions? Contact our FREE Tech Support.

    The ME742C-R5 also works with:
    • 16-Card Interface Converter Rack (RM005)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for RS-232/RS-485 Multipoint Line Driver (LD485S-MP), Card:


    Connect your RS-232/RS-485 Multipoint Line Driver (LD485S-MP), Card with:

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A warranty is included.

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most of our products come with a one- or two-year warranty. Some products—such as copper cables, manual switches, cabinets, and racks—are even guaranteed for life!

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product* for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! ?
    Tech Support Hotline 100% FREE! $$$

    What’s more, we also have a 45-day, no-questions-asked return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    Product SKU Price Quantity
    RS-232/RS-485 Multipoint Line Driver (LD485S-MP), Standalone ME742A-R5 $279.95

    You can find this product in the following subcategory(s)


    Add to Cart

    Price: $248.95

    Quantity Available: 2

    Quantity

    Warranty

    Total

    (2 available)

    Shipping Info

    Weight: 0.75 lbs.
    HxWxD: 3 x 7 x 9.05 in.

    What’s more, we also have a 45-day, no-questions-asked return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.
