ME838A-R3

Photo may show similar product

Other views

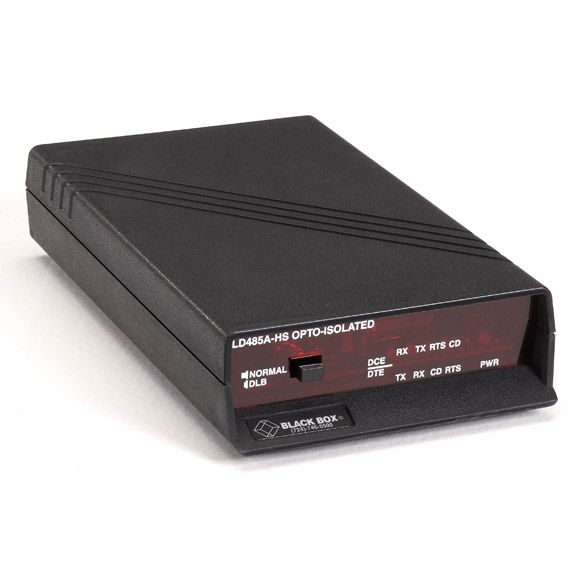

RS-232/RS-485 High-Speed Opto-Isolated Line Driver (LD485A-HS Opto-Isolated), Standalone

The perfect industrial line driver—speed, surge protection, and optical isolation, too.

ME838A-R3

Extended Double Diamond™ Warranty Available (3 Additional Year)

Product Highlights

  • This line driver is versatile, reliable, and fast enough for use with all your high-speed equipment.
  • Data rates up to 115 kbps for high-speed industrial applications.
  • Surge protection built into RS-485 port.
  • Many user-selectable features.
  • We can customize for your application!


  • Further Details

  • Opto-isolated model for maximum safety.

    The RS-232/RS-485 High-Speed Line Driver is perfect for 4-wire half- or full-duplex applications, or for 2-wire half-duplex, point-to-point, or multipoint applications. And it enables you to link up to 64 devices via twisted-pair cable.

    Because it has selectable settings, you can customize the driver for your application. Set line bias to match RS-485 equipment, such as industrial shipping devices. You can set the RS-485 driver to be enabled either by RS-232 control signals or by data, or to be constantly on. Select normal operation or loopback testing.

    Surge-protection circuitry—transorbes, zener diodes, and inductors—guard the RS-485 side against induced surges. Optical isolation is also available on the ME838A-R3 to protect your data from ground-loop surges and interference caused by industrial machines. A port time-out feature prevents any single port from tying up your network.

    This line driver is transparent to data, and it can transmit data short distances at up to 115 kbps or as far as 4000 feet (6.4 km) at 1200 bps.

    NOTE: Model without opto-isolation also available.

    This product works with:
    • CAT5 100-MHz Solid-Conductor Bulk Cable, 2-Pair (EYN717A)
    • Standard RS-232 Low-Noise Cable, 25-Conductor, Male/Male (ECM25C-MM)
    The ME837C-R3 also works with:
    • 16-Card Rack (RM005)
    Questions? Contact our FREE Tech Support.

  • Distance (Maximum) 4000 ft. (1219.2 m)
    Operation 4-wire half- or full-duplex; 2-wire half-duplex, point-to-point, or multipoint
    Protocol Asynchronous
    CE Approval Yes
    Interface Equipment: RS-232;
    Line: RS-485
    Connectors (1) DB25 F, (1) 4-screw terminal block
    Power 115 VAC, 60 Hz (230-VAC version on request)
    Size 1.8"H x 5.5"W x 8.5"D (4.6 x 14 x 21.6 cm)
    Weight 1.9 lb. (0.9 kg)
    This product works with:
    • CAT5 100-MHz Solid-Conductor Bulk Cable, 2-Pair (EYN717A)
    • Standard RS-232 Low-Noise Cable, 25-Conductor, Male/Male (ECM25C-MM)
    The ME837C-R3 also works with:
    • 16-Card Rack (RM005)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.
