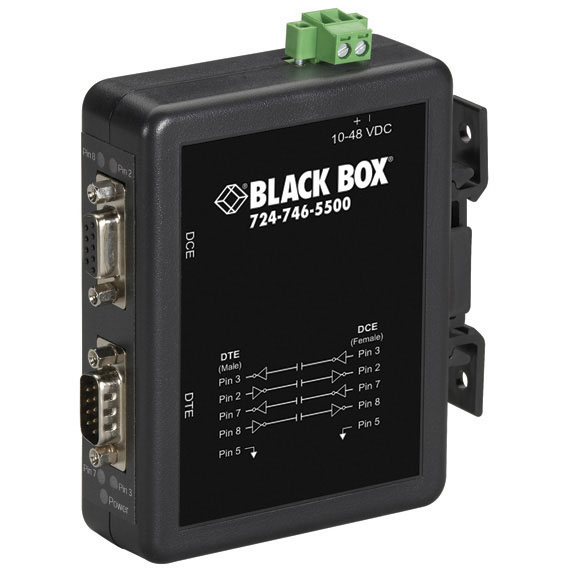

RS-232 Industrial DIN Rail Repeater

Three-way isolation and a wide power range for heavy-duty communication.

ICD108A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • UL® approved.
  • Three-way isolation, 2000-V input/output.
  • Operates in harsh environments, withstanding temperatures of -40° to +185° F (-40° to +85° C).
  • Features 600 W of surge suppression.
  • Optical isolation protects your devices from transient surges and ground loops on your data line.


  • Description

    RS-232 Industrial DIN Rail Repeater


    Quick Facts

  • UL® approved.
  • Three-way isolation, 2000-V input/output.
  • Operates in harsh environments, withstanding temperatures of -40° to +185° F (-40° to +85° C).
  • Features 600 W of surge suppression.
  • Optical isolation protects your devices from transient surges and ground loops on your data line.

  • Further Details

  • The RS-232 model isolates the TD, RD, RTS, and CTS channels.
  • Features 10–48-VDC operation and withstands temperature extremes.
  • Modbus ASCII or RTU compatible.
  • Automatic Send Data Control eliminates the need for driver software.
  • Conveniently mount on optional DIN Rails.


  • This product works with:
  • DIN Rail (DR100)
  • DIN Rail 12-VDC Power Supply (PSD100)
    Questions? Contact our FREE Tech Support.

  • Technical Specifications for RS-232 Industrial DIN Rail Repeater:

    Distance (Maximum) 50 ft. (15.2 m)
    Operating Environment -40° to +185° F (-40° to +85° C);
    Humidity: Up to 95% noncondensing
    Operation RS-232: Half- or full-duplex
    Speed Up to 115.2 kbps
    CE Approval Yes
    Connectors (1) DB9 M, (1) DB9 F
    Power +10 to -48 VDC (±20%) or from optional DIN Rail 12-VDC Power Supply (PSD100)
    Size 4.9"H x 4.2"W x 1.3"D (12.4 x 10.7 x 3.3 cm)
    This product works with:
  • DIN Rail (DR100)
  • DIN Rail 12-VDC Power Supply (PSD100)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
