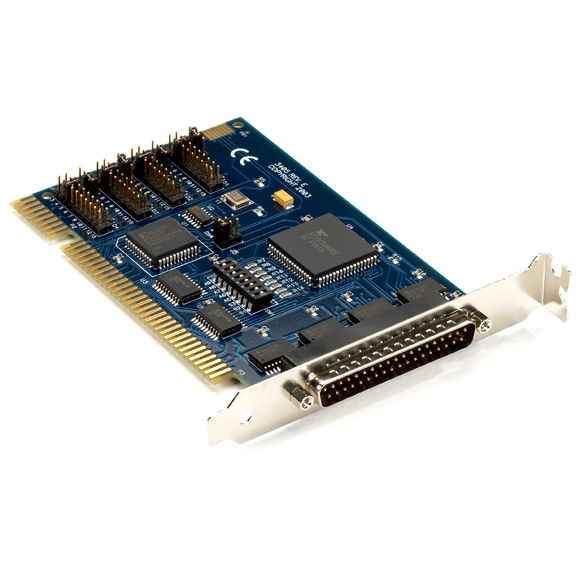

IC102C-R2

Photo may show similar product

Other views

RS-232 ISA Card with ISP, 4-Port, 16554 UART

Keep track of generated interrupts on your ISA bus ports.

IC102C-R2

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Connect to any RS-232 device, such as data-entry terminals and plotters.
  • Includes an Interrupt Status Port (ISP) for greater throughput when servicing multiple ports on a single interrupt line.


  • Description

    RS-232 ISA Card with ISP, 4-Port, 16554 UART


    Quick Facts

  • Connect to any RS-232 device, such as data-entry terminals and plotters.
  • Includes an Interrupt Status Port (ISP) for greater throughput when servicing multiple ports on a single interrupt line.

  • Further Details

  • Windows, Linux, and QNX compatible.
  • The 4-port card includes (1) DB37 female connector to (4) 3-ft. cables with DB25 male connectors.

    The RS-232 ISA Card with ISP has a built-in Interrupt Status Port (ISP) and enhanced software driver, so multiple ports and multiple cards can share a single IRQ under Windows® 95, 98, and Windows NT®.

    The IC102C-R2 has a 16554 UART and it's standard oscillators has been changed from 1.8432 to 7.3728 for burst data rates of up to 460.8 kbps. Working with lower baud-rate devices? The divisor jumper enables you to divide your data rate by one or four for backwards compatibility.

  • Technical Specifications for RS-232 ISA Card with ISP, 4-Port, 16554 UART:

    Distance (Maximum) 50 ft. (15.2 m)
    Protocol Asynchronous
    Speed (Maximum) IC102C-R2, IC112C-R3: 115.2 kbps;
    IC182C: 460.8 kbps (sustained);
    CE Approval Yes
    Connectors IC102C-R2: (1) DB37 F, (4) DB25 M;
    IC112C-R3, IC182C: (1) DB78F, (8) DB25M


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for RS-232 ISA Card with ISP, 4-Port, 16554 UART:

    Product Data Sheets


    Connect your RS-232 ISA Card with ISP, 4-Port, 16554 UART with:

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A warranty is included.

    Extended 1 Year Warranty Available


    Protect your purchase with an additional 1 Year Double Diamond™ warranty!
    Cost: $21.00

    Extended 3 Year Warranty Available


    Protect your purchase with an additional 3 Year Double Diamond™ warranty!
    Cost: $41.99

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most of our products come with a one- or two-year warranty. Some products—such as copper cables, manual switches, cabinets, and racks—are even guaranteed for life!

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product* for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! ?
    Tech Support Hotline 100% FREE! $$$

    What’s more, we also have a 45-day, no-questions-asked return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    Product SKU Price Quantity
    RS-232 ISA Cards with ISP, 16554 UART IC112C-R3 $439.95

    You can find this product in the following subcategory(s)


    Add to Cart

    Price: $219.95

    Quantity Available: 6

    Quantity

    Warranty

    Total

    Shipping Info

    In Stock - orders received before 5PM ET ship same day

    Weight: 2.2 lbs.
    HxWxD: 3.5 x 6.5 x 13.5 in.
