Industrial > Peripheral Switching & Sharing

click photo to enlarge

SW901A

Photo may show similar product

Other views

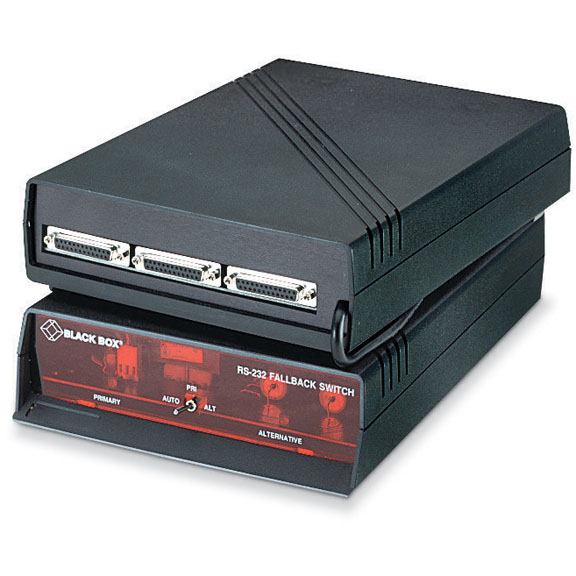

RS-232 Fallback Switch (FBS)

Complete disaster recovery. BLACK BOX® Fallback Switches provide automatic backup.

SW901A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Instantly detects lapses in the primary line, then switches to a backup line.
  • Use it as a line sharer with automatic flow control.
  • Front-panel LEDs show you system status at a glance.

  • Description

    RS-232 Fallback Switch (FBS)


    Quick Facts

  • Instantly detects lapses in the primary line, then switches to a backup line.
  • Use it as a line sharer with automatic flow control.
  • Front-panel LEDs show you system status at a glance.

  • Further Details

    Keep leased-line failures from costing you time and money. The instant the RS-232 Fallback Switch detects a lapse in the primary line, it switches your system to a backup line. As soon as signal is restored, it switches back to the primary line. The switch can support data rates as high as your RS-232 line can carry.


    Technical Specifications for RS-232 Fallback Switch (FBS):

    Leads Supported — 2–6, 8, 15, 17, 20–22, 24; 1 and 7 tied common
    Switches — (1) 3-position mode selector
    Interface — RS-232, synchronous or asynchronous
    Connectors — (3) DB25 F; master port is DCE, primary and alternate ports are DTE
    Indicators — (2) LEDs: ALT/PRI
    CE Approval — 230 VAC version: SW901AE
    Power — 115/230 VAC, 60/50 Hz (switch-selectable), 8 watts
    Size — 2.3"H x 8.3"W x 11.5"D (5.8 x 21.1 x 29.2 cm)
    Weight — 2 lb. (0.9 kg)
    NOTE: All 12 required leads of the RS-232 interface for async or sync are switched.

    This product works with:
    • RS-232 Cable, 25-Conductor, Male/Male (ECM25C)
    Questions? Contact our FREE Tech Support.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for RS-232 Fallback Switch (FBS):

    Product Data Sheets

    Application Diagrams


    Connect your RS-232 Fallback Switch (FBS) with:

    Accessory: ECM25T-0010-MM

    Standard RS-232 Low-Noise Cable, 25 Conductors—Pins 1–25, Male/Male, 10-ft. (3.0-m)
