Cables > RS-232

click photo to enlarge

EMN25C-0075-FF

Photo may show similar product

Other views

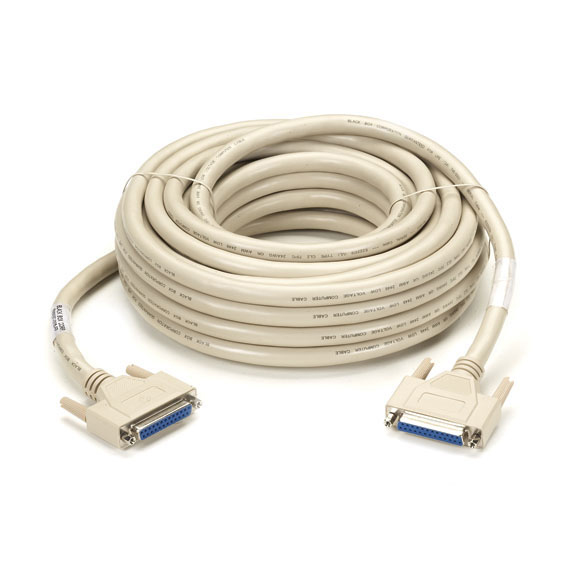

RS-232 Extended-Distance/Quiet Cable with Molded Hoods, 25 Conductors (12 1/2 Pairs), Female/Female, 75-ft. (22.8-m)

Transmit RS-232 data up to 500 feet at 9600 bps!

EMN25C-0075-FF


Lifetime Warranty

Product Highlights

  • Feature a foil shield plus an 85% tinned copper braid for extra protection against EMI/RFI transmissions in noisy office environments.
  • Molded, nonremovable hoods.
  • Guaranteed for life!

  • Description

    RS-232 Extended-Distance/Quiet Cable with Molded Hoods, 25 Conductors (12 1/2 Pairs), Female/Female


    Quick Facts

  • Feature a foil shield plus an 85% tinned copper braid for extra protection against EMI/RFI transmissions in noisy office environments.
  • Molded, nonremovable hoods.
  • Guaranteed for life!

  • Further Details

  • NEC® CL2 compliant. For connecting computers inside a building. Not for use in risers or plenums.
  • Low capacitance.
  • All conductors are straight wired for connecting the serial output of your computer to a switch box.
  • Male screw locks are standard.
  • Perfect for industrial applications near heavy machinery or in environments with high EMI/RFI.

  • ED/Q cable features a stranded twisted-pair construction covered with two shields. A shorted aluminum-foil shield attenuates high-frequency emmissions. A copper-braid shield attenuates low-frequency emissions.


    Technical Specifications for RS-232 Extended-Distance/Quiet Cable with Molded Hoods, 25 Conductors (12 1/2 Pairs), Female/Female, 75-ft. (22.8-m):

    Cable Construction — PVC
    Capacitance — 12 pF/ft. ± 2 pF/ft.
    Conductor Gauge — 24 AWG (7 x 32), stranded
    Outside Diameters — 0.245", 0.260", 0.335", 0.365", 0.430"
    Resistance — 30 ohms/1000 ft.

    NOTE: If your application demands a plenum-rated cable, see our Bulk RS-232 Plenum Cable (EYN25A).
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
