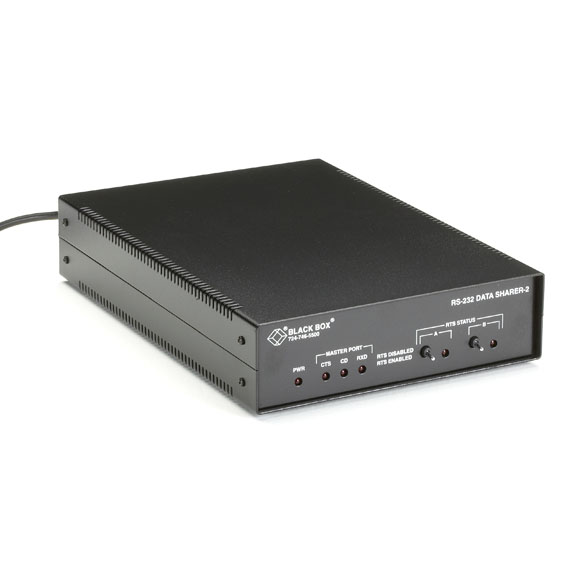

TL601A-R2

Photo may show similar product

Other views

RS-232 Data Sharer, 2-Port (in Metal Case)

Cut expenses by connecting up to two RS-232 devices over one line.

TL601A-R2

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • With an RS-232 Data Sharer from Black Box, you can cut modem costs and leased-line charges by linking up to two RS-232 devices to one modem and phone line.
  • Use a single phone line and modem to share multiple RS-232 devices.
  • Transparent to data rates up to 64 kbps.
  • Run sync or async, half- or full-duplex.
  • Works with popular IBM® communications protocols.
  • Also available in 4-and 8-port versions.

  • Description

    RS-232 Data Sharer, 2-Port (in Metal Case)


    Quick Facts

  • With an RS-232 Data Sharer from Black Box, you can cut modem costs and leased-line charges by linking up to two RS-232 devices to one modem and phone line.
  • Use a single phone line and modem to share multiple RS-232 devices.
  • Transparent to data rates up to 64 kbps.
  • Run sync or async, half- or full-duplex.
  • Works with popular IBM® communications protocols.
  • Also available in 4-and 8-port versions.

  • Further Details

    Reduce line costs in your RS-232 system by using a BLACK BOX® RS-232 Data Sharer to connect two devices to a single modem and phone line.

    The RS-232 Data Sharer features transparent operation up to 64 kbps and convenient LED monitoring. Front-panel switches enable and disable RTS on each input port.

    It features antistreaming circuitry to lock out any port the instant it begins to stream.

    The RS-232 Data Sharer is compatible with various popular IBM communications protocols, such as half-duplex Bisynchronous Communication and Synchronous Data Link Control (SDLC).

    This product works with:
  • Adapter Cable for IBM 3174/3274 Contoller (EHM002)
  • Standard RS-232 Low-Noise Cable (ECM25T, ECM25C)
  • CSU/DSU MS (MT132V-R2)
  • Questions? Contact our FREE Tech Support.


    Technical Specifications for RS-232 Data Sharer, 2-Port (in Metal Case):

    Clock Source External (from DCE)
    Contention Type RTS/CTS
    Leads Supported 8, 15, 17, 20, 22
    Operation Full- or half-duplex
    Protocol Synchronous or asynchronous
    Interface RS-232 (master port DTE, slave ports DCE)
    Connectors (3) DB25 F
    Indicators (6): PWR, RTS A, RTS B, CD, CTS, RXD
    Power 115 VAC, 60 Hz (230-VAC versions on request)
    Size 2.5"H x 8.1"W x 11.3"D (6.4 x 20.6 x 28.7 cm)
    Weight 2.4 lb. (1.1 kg)
    This product works with:
  • Adapter Cable for IBM 3174/3274 Contoller (EHM002)
  • Standard RS-232 Low-Noise Cable (ECM25T, ECM25C)
  • CSU/DSU MS (MT132V-R2)
  • Questions? Contact our FREE Tech Support.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
