Networking > Terminal Servers

click photo to enlarge

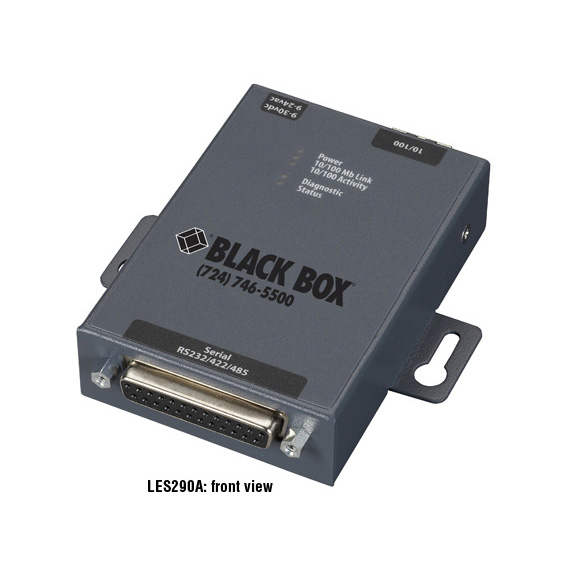

LES290A

Photo may show similar product

Other views

RS-232/422/485 Device Server

Access serial devices across your network.

LES290A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Manageable through your Web browser.
  • RoHS compliant.
  • Compact size.
  • Supports RS-232,
    RS-422, and RS-485.

  • Description

    RS-232/422/485 Device Server


    Quick Facts

  • Manageable through your Web browser.
  • RoHS compliant.
  • Compact size.
  • Supports RS-232,
    RS-422, and RS-485.

  • Further Details

    The RS-232/422/485 Device Server is a quick and easy way to connect to an RS-232/422/485 serial device across your network. There’s no need to run separate serial cable, and there are no distance limitations—anywhere your network goes, you can make a serial connection. Use the device server to access faraway serial devices such as printers, scanners, and industrial devices. And, because the device server accepts AT commands, you can even use it as a modem substitute, replacing a pair of modems and a phone line with a pair of device servers and your Ethernet network—a very economical solution for legacy devices that communicate by modem.

    Operation is transparent to your equipment and your software. The device server encapsulates serial data into packets for transport over Ethernet. Another device server takes the data from the Ethernet side and turns it back into serial data.

    The device server features a built-in Web server so you can access its management features from your PC using any standard Web browser. You can also manage it locally through the serial port or by using Telnet™. The device server also includes Windows® based configuration software.


    Technical Specifications for RS-232/422/485 Device Server:

    Data Rate — Ethernet: 10/100 Mbps, autosensing or software selectable;
    Serial: 300 bps to 230 kbps, software selectable
    Environmental — Operating temperature: +41 to +122° F (+5 to +50° C);
    Storage temperature: -40 to +151° F (-40 to +66° C)
    Management — Included Windows based configuration software, serial login, SNMP, Telnet login, HTTP
    Serial Interface — RS-232, RS-422, or RS-485, software selectable; 7 or 8 data bits; even, odd, or no parity; 1 or 2 stop bits; CTS/RTS; X-ON/X-OFF
    Standards — IEEE 802.3, IEEE 802.3u, ARP, UDP, TCP, ICMP, Telnet, TFTP, AutoIP, DHCP, HTTP, SNMP
    CE Approval — Yes
    Connectors — (1) RJ-45, (1) DB25 F
    Indicators — LEDs: (1) Power, (1) Link/Activity, (1) Status
    Power — 100–240 VAC, 50–60 Hz external power supply
    Size — 0.9"H x 2.5"W x 3.5"D (2.3 x 6.4 x 9 cm)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for RS-232/422/485 Device Server:

    Manuals

    • RS-232/422/485 Device Server
      Installation and User Guide (10/7/2012)

    Product Data Sheets


    Connect your RS-232/422/485 Device Server with:

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A Two year warranty is included.

    Extended Two years for one Warranty Available


    Protect your purchase with an additional Two years for oneDouble Diamond™ warranty!
    Cost: $18.90

    Extended Three years for two Warranty Available


    Protect your purchase with an additional Three years for twoDouble Diamond™ warranty!
    Cost: $37.79
