Networking > Switches

click photo to enlarge

LGB424A

Photo may show similar product

Other views

  • LGB424A
  • LGB424A

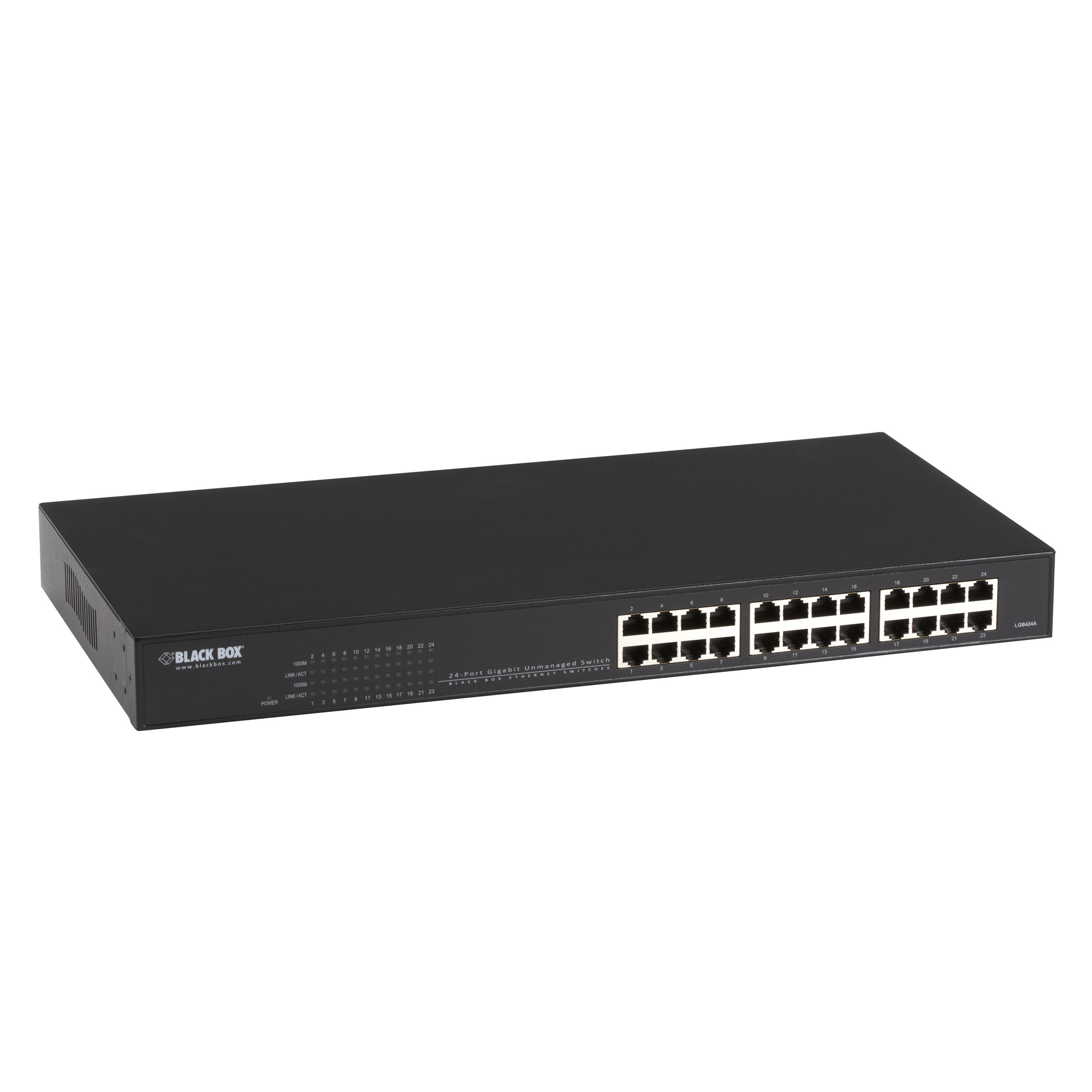

RJ-45 Unmanaged Gigabit Switch, 24-Port

Expand your Gigabit network effortlessly.

LGB424A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Connect up to 24 Gigabit Ethernet, Fast Ethernet, or Ethernet devices.
  • Autonegotiation makes your job easy: every port can automatically sense the mode and speed of connected network devices.
  • Handles large file transfers efficiently.


    • Description

    RJ-45 Unmanaged Gigabit Switch, 24-Port


    Quick Facts

  • Connect up to 24 Gigabit Ethernet, Fast Ethernet, or Ethernet devices.
  • Autonegotiation makes your job easy: every port can automatically sense the mode and speed of connected network devices.
  • Handles large file transfers efficiently.

    • Further Details

    If you want to expand your network without a lot of cost or effort, this basic Gigabit Ethernet Switch is a great choice for large and medium environments, to boost network performance and efficiency.

    Connect it to up to 24 Gigabit Ethernet, Fast Ethernet, or Ethernet devices: an autonegotiation feature assures you that the devices are operating at the right speed and in the proper duplex mode. And an Auto MDI/MDI-X feature means every port can automatically sense the type of cable, eliminating the need for crossover cables whether you are connecting the switch to another switch or to a computer.

    You’ll save time transferring large files, too, because it also supports jumbo frames 9.6K to most efficiently handle large file transfers.

    Features include:
    Autonegotiation: Every port can automatically sense if the connected network devices are running at 10, 100, or 1000 Mbps, or half-or full-duplex mode, and adjust accordingly.

    Non-blocking: This switch receives and forwards traffic seamlessly with its non-blocking wire speed. Every port simultaneously supports up to 2000 Mbps of bandwith in full-duplex mode, providing full wire speed to the connected devices and enabling you to run a smooth network.

    Store-and-forward transmission: Maximizes network performance while minimizing the propagation of bad network packets.

    IEEE 802.x flow control for full-duplex mode and collision-based backpressure for half-duplex mode.

    What’s included:
  • Switch
  • (2) 19" rackmount brackets
  • (8) Screws
  • Power cord
  • User’s manual


    • Technical Specifications for RJ-45 Unmanaged Gigabit Switch, 24-Port:

    MAC Addresses — 8 K
    Standards — IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
    CE Approval — Yes
    RoHS — Yes
    Connectors — 24 RJ-45
    Indicators — LEDs: Per unit: (1) PWR, (1) CPU;
    Per port: (24) LINK/ACT, (1) 10/100/1000 Mbps
    Operating Environment — Temperature: 32 to 122°F (0 to 55°C);
    Humidity: 10 to 90%, noncondensing
    Power — Voltage: 90-260 VAC; 50-60 Hz;
    Consumption: (Maximum): 20 Watts Size — 1.7"H x 8.7"W x 17.3"D (4.4 x 22 x 44 cm)
    Weight — 6.6 lb. (3 kg)
    What’s included:
  • Switch
  • (2) 19" rackmount brackets
  • (8) screws
  • Power cord
  • User’s manual


    • NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for RJ-45 Unmanaged Gigabit Switch, 24-Port:

    Manuals

    • Unmanaged Gigabit Switch
      (Version 1)
      httpftp


    Connect your RJ-45 Unmanaged Gigabit Switch, 24-Port with:

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A One year warranty is included.

    Extended Two years for one Warranty Available


    Protect your purchase with an additional Two years for oneDouble Diamond™ warranty!
    Cost: $26.00

    Extended Three years for two Warranty Available


    Protect your purchase with an additional Three years for twoDouble Diamond™ warranty!
    Cost: $51.99
