Digital Signage & Multimedia > Video Infrastructure

click photo to enlarge

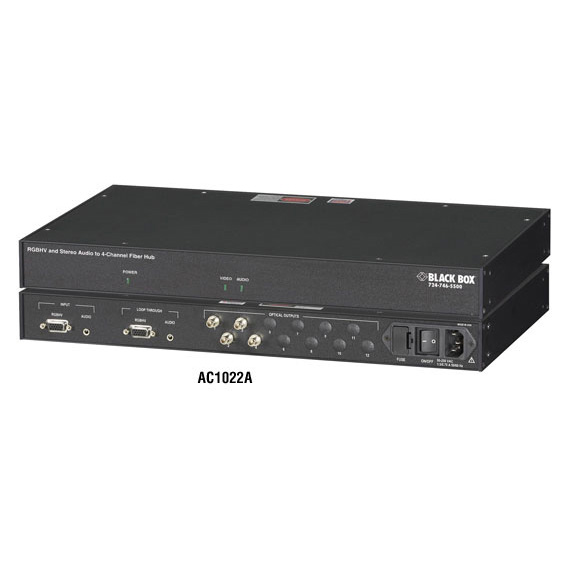

AC1022A

Photo may show similar product

Other views

VGA/Stereo-Audio Fiber Extender Transmitter, 4-Port, (4) ST Optical Outputs, (1) RGB Input with Loop-Through, (1) 3.5-mm Audio Input with Loop-Through

Extend high-resolution RGB and audio signals over single-mode or multimode fiber.

AC1022A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Digital processing ensures crystal-clear transmission with no color pixel skewing.
  • Send high-resolution RGB and stereo audio up to 750 meters (2460.6 ft.) over multimode fiber optic cable or up to 30 kilometers (18.6 mi.) over single-mode fiber optic cable.


    • Description

    VGA/Stereo-Audio Fiber Extender Transmitter, 4-Port, (4) ST Optical Outputs, (1) RGB Input with Loop-Through, (1) 3.5-mm Audio Input with Loop-Through


    Quick Facts

  • Digital processing ensures crystal-clear transmission with no color pixel skewing.
  • Send high-resolution RGB and stereo audio up to 750 meters (2460.6 ft.) over multimode fiber optic cable or up to 30 kilometers (18.6 mi.) over single-mode fiber optic cable.

    • Further Details

  • Require only a single fiber strand.
  • Transmit VGA, SVGA, XGA, and WXGA.
  • Support HDTV resolutions of 480p, 720p, and 1080i (RGBHV format only).
  • Easy to install—require no adjustments, equalization, or de-skewing.

    Do you need to send high-resolution RGB and audio signals over single-mode or multimode fiber? Then look no further than Black Box’s RGBHV/Stereo-Audio Fiber Extender Transmitter! It works in point-to-point, point-to-multipoint, and drop-and-repeat configurations.

    Applications
    This fiber extender transmitter is ideal for applications in which you need to keep your audience informed and up-to-date, including:

  • Broadcast studios where you need additional video and audio capacity.
  • Corporate theaters for presentations and important company information.
  • Stadiums for live game coverage everywhere in the facility.
  • Airport kiosks with flight and retail information.
  • Stores with sales, special offers, and other important information for your customers.
  • Medical facilities to share images and observe procedures.
  • Network operations centers.
  • Secure facilities.
  • And many more!

    Functionality
    The fiber extender transmitter is interoperable with our other Black Box RGBHV/Stereo-Audio Fiber Extender transmitters and receivers. You can use each receiver with each transmitter, so nearly any configuration you design will work.

    By operating in the 1310-nm wavelength over multimode or single-mode fiber, this unit reduces optical loss and enables you to get maximum distance in your application—up to 750 meters (2460.6 ft.) over multimode cable and a whopping 30 kilometers (18.6 mi) with an optical loss budget of 15 dB over single-mode cable. It maintains high-resolution video integrity with uncompressed, unscaled 24-bit RGB processing, and because the audio signals are also sent over fiber, you’re not limited by copper distance restrictions or signal degradation.

    What's included with the AC1021A-XMIT:
    • Transmitter
    • 6-ft. 3.5-mm audio cable
    • 6-ft. 3.5-mm to (2) RCA male audio cable
    • 6-ft. HD15 male to HD15 male VGA cable
    • External power supply
    • Manual


    • Technical Specifications for VGA/Stereo-Audio Fiber Extender Transmitter, 4-Port, (4) ST Optical Outputs, (1) RGB Input with Loop-Through, (1) 3.5-mm Audio Input with Loop-Through:

    Audio Bandwidth — 20 Hz to 20 kHz
    Distance (Maximum) — Multimode: 750 m (2460.6 ft.);
    Single-mode: 30 km (18.6 mi.) (Optical loss budget of 0-15 dB must not be exceeded regardless of distance.)
    Wavelength — 1310 nm
    CE Approval — Yes
    Connectors — AC1021-XMIT: Video: (1) HD15 F; Audio: (1) 3.5-mm stereo jack; Fiber: (1) ST®;
    AC1022A: Video: (1) HD15 F; Audio: (1) 3.5-mm stereo jack; Fiber: (4) ST®;
    Both: Power: (1) terminal block
    Indicators — LEDs: (1) Power, (1) Video, (1) Audio
    Power — AC1021A-XMIT: 9–24 VAC or VDC, 5 W;
    AC1022A: 95–250 VAC, 9 W
    Size — AC1021A-XMIT: 1.2"H x 5"W x 5.3"D (3.1 x 12.7 x 13.5 cm);
    AC1022A: 1.8"H x 16.8"W x10"D (4.6 x 42.7 x 25.4 cm)
    Weight — AC1021A-XMIT: 0.6 lb. (0.3 kg);
    AC1022A: 5.5 lb. (2.5 kg)

    This product works with:
  • Premium Ceramic, Multimode, 62.5-Micron Fiber Optic Cable, ST–ST (EFN110-STST, etc.)
  • Single-Mode, 9-Micron Duplex Fiber Optic Cable, PVC, ST–ST (EFN310-001M-STST, etc.)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
