Video & Multimedia > Adapters

click photo to enlarge

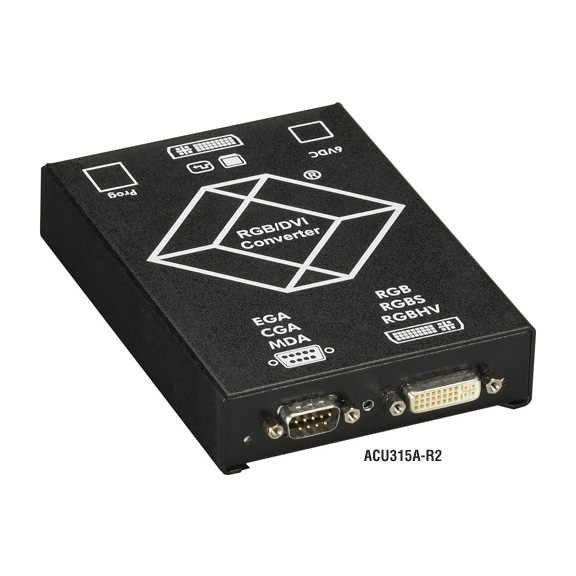

ACU315A-R2

Photo may show similar product

Other views

RGB to DVI/VGA Converter

Display video from an RGB source on a DVI or VGA screen.

ACU315A-R2

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Supports input from RGB and RGBS video sources.
  • Outputs to either a flat-screen digital DVI or an analog VGA display.
  • Resolutions up to 1280 x 1024 with refresh rates that work with your CRT or TFT.

  • Description

    RGB to DVI/VGA Converter


    Quick Facts

  • Supports input from RGB and RGBS video sources.
  • Outputs to either a flat-screen digital DVI or an analog VGA display.
  • Resolutions up to 1280 x 1024 with refresh rates that work with your CRT or TFT.

  • Further Details

  • Use to output RGB video from equipment incompatible with newer types of monitors.
  • Adjustable onscreen display (OSD) gives you a higher level of control over the quality of the converted image.
  • Scaling options enable you to fine-tune the output to match your application.
  • Control pixel clock and phase, as well as image brightness, contrast, color calibration, and more!

    Displaying an RGB signal on a VGA screen as well as a DVI flat-screen TFT requires a precise conversion of the output signal. The BLACK BOX® RGB to DVI/VGA Converter does this and more.

    This compact box enables you to convert the red, green, and blue signals and synchronization (HSYNC and VSYNC) frequencies from the RGsB (sync on green) or RGBS source so they can be displayed with the correct resolution and pixel size on a monitor with either VGA or DVI inputs.

    It’s particularly useful for attaching equipment that has DVI input but no RGB input. Use it to connect newer DVI monitors to older RGB equipment. The converter can also be used in factory floor applications where you want to use the latest display equipment instead of CRTs to view video from a PLC or similar device.

    Along with converter, you get adapter cables for different monitor connections, including an RGB/RGBS (BNC) to DVI-I adapter cable and a DVI-I to VGA adapter cable. You can also use the converter with legacy TTL level (EGA, CGA, or MDA) video sources with the included adapter cable.

    The converter digitizes the incoming RGB video signal, stores it in its internal video memory, then—using a selectable resolution format and refresh rate—displays it correctly on a DVI or VGA screen. It supports RGB, RGBS, and RGBHV in either progressive scan or interlaced mode.

    An onscreen display (OSD) function enables you to optimize the display with the included infrared remote control. In addition to buttons for controlling brightness and contrast, the converter has more than 80 preset resolution configurations optimized for the various video standards available. (However, the converter can also be customized manually to work flawlessly with even non-standard RGB sources, too.)

    For optimal display, you can format the image to fit the entire screen, display a 1:1 ratio with a black box, fit one dimension with another scaled appropriately, or be shown in fixed 2:1 stretch factor. Using the OSD, you can also optimize video to your liking with color, hue, saturation, and flesh/skin tone icon commands.

    What’s more, for fine-tuning the image, the converter enables you to manually adjust the pixel phase to eliminate any flickering, horizontal noise, horizontal waved-formed lines, or “zebra” patterns that might appear.

    The RGB to DVI/VGA Converter stores all settings in nonvolatile EEPROM memory, and its firmware and settings can also be flash upgraded as required using the included programming cable.

    What’s included:
  • RGB to DVI/VGA Converter
  • Infrared remote controller
  • RGB/RGBS (BNC) to DVI-I adapter cable
  • DVI-I to VGA (HD15) adapter cable
  • DB9 male to DB9 female serial data cable
  • DB9 female to RJ-11 programming cable
  • 6-VDC, 12-W universal power supply with power cord

  • Technical Specifications for RGB to DVI/VGA Converter:

    CE Approval — Yes
    Resolution (Maximum) — 1280 x 1024 at 60 or 75 Hz
    Scaling — Original in black box (1:1), format fitting, proportional fitting, fixed stretch factor (2:1)
    Signaling — Input: RGB, RGBS, RGBHV (VGA), CGA, MDA, or EGA; Output: VGA or DVI
    Connectors — DVI/VGA: (1) DVI-I F (to connect to RGB or VGA source via the included adapter cable), (1) DVI-I F (to connect to VGA or DVI monitor or TFT);
    TTL: (1) DB9 M (to connect to CGA, MDA, or EGA source);
    (1) RJ-11 (for firmware upgrades via the included programming cable)
    Indicators — (4) status LEDs
    Power — Input: 100–240 VAC, 47–63 Hz;
    Output: 6 VDC, 2.0 A, 12 W (max.)
    Size — 4"H x 5.6"W x 1.1"D (10.2 x 14.2 x 2.8 cm)
    Weight — 3.5 lb. (1.6 kg)
    NOTE: Some flat screens may not recognize the resolution output from the converter. For details, contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
