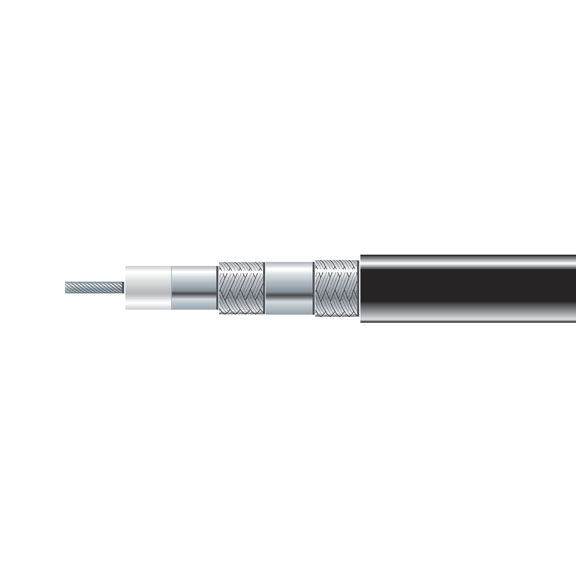

RG-6 Quad-Shielded Coax Cable, 75 Ohms, PVC, 1000-ft. (304.8-m)

Quad-shielded, copper-coated steel for CATV, digital satellite, and antennas.

RG6-QS-CMR-CCS

Extended Double Diamond™ Warranty Available
(Lifetime)

Product Highlights

  • Lower attenuation than RG-59 cable for longer distances.
  • 75 ohms. Tested to 3 GHz.
  • Construction: 18 AWG solid copper clad steel, dielectric, aluminum/poly tape, 34 AWG aluminum braid (60% coverage), aluminum/poly tape, 34 AWG aluminum braid (40% coverage), jacket.
  • Guaranteed for life!


  • Description

    RG-6 Quad-Shielded Coax Cable, 75 Ohms, PVC, 1000-ft. (304.8-m)


    Quick Facts

  • Lower attenuation than RG-59 cable for longer distances.
  • 75 ohms. Tested to 3 GHz.
  • Construction: 18 AWG solid copper clad steel, dielectric, aluminum/poly tape, 34 AWG aluminum braid (60% coverage), aluminum/poly tape, 34 AWG aluminum braid (40% coverage), jacket.
  • Guaranteed for life!

  • Further Details

  • Tested to 1 GHz. 75 ohms.
  • Made in the USA.
  • Also available in plenum.


  • Technical Specifications for RG-6 Quad-Shielded Coax Cable, 75 Ohms, PVC, 1000-ft. (304.8-m):

    Attenuation10.92 dB at 3000 MHz
    Bend Radius (Min.) Loaded: 20 times cable OD;
    Unloaded: 10 times cable OD
    Construction 18 AWG solid copper clad steel, dielectric, aluminum/poly tape, 34 AWG aluminum braid (60% coverage), aluminum/poly tape, 34 AWG aluminum braid (40% coverage), jacket
    Diameter over Dielectric 0.180
    Diameter (Outer) 0.300" ± 0.008
    Dielectric Foam polyethylene
    RoHS Yes
    NOTE: Also available in plenum.
    This cable works with:
  • RG-6 Quad-Shielded Coax Connectors, BNC (FCBNC02) and F-Type (FCF02)
  • Coax Crimp Tool (CCC01)
  • Questions? Contact our FREE Tech Support.
    NOTE: Also available in plenum.

    This cable works with:
  • RG-6 Quad-Shielded Coax Connectors, BNC (FCBNC02) and F-Type (FCF02)
  • Coax Crimp Tool (CCC01)
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
