Cables > Coax & Twinax

click photo to enlarge

RG592X18-CMR-BC

Photo may show similar product

Other views

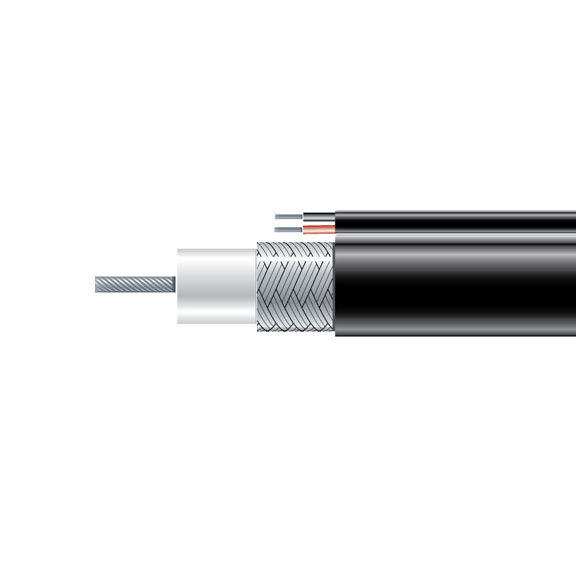

RG-59/2x18 Coax Cable, 75 Ohms, 1000-ft. (304.8-m), PVC

Save time and money by running power and video over one cable.

RG592X18-CMR-BC

Extended Double Diamond™ Warranty Available
(Lifetime)

Product Highlights

  • Ideal for surveillance systems where there are no power connections.
  • Tested to 1 GHz. 75 ohms.
  • Construction: 20 AWG solid bare copper, dielectric, 36 AWG copper braid (93% coverage), jacket, (2) 18 AWG power lines
  • Tested to 1 GHz. 75 ohms.
  • Made in the USA.
  • Guaranteed for life!

  • Description

    RG-59/2x18 Coax Cable, 75 Ohms, 1000-ft. (304.8-m), PVC


    Quick Facts

  • Ideal for surveillance systems where there are no power connections.
  • Tested to 1 GHz. 75 ohms.
  • Construction: 20 AWG solid bare copper, dielectric, 36 AWG copper braid (93% coverage), jacket, (2) 18 AWG power lines
  • Tested to 1 GHz. 75 ohms.
  • Made in the USA.
  • Guaranteed for life!

  • Further Details



    Technical Specifications for RG-59/2x18 Coax Cable, 75 Ohms, 1000-ft. (304.8-m), PVC:

    "Attenuation
    10.20 dB @ 1000 MHz
    Bend Radius (Min.)
    Loaded: 20 times cable OD; Unloaded: 10 times cable OD
    Conductors
    Coax: (1) 20 AWG solid bare copper; Power: (2) 18 AWG stranded copper
    Construction
    Dielectric, 36 AWG copper braid (93% coverage), jacket
    Diameter (Outer)
    0.242Diameter over Dielectric 0.144Dielectric Foam polyethylene
    RoHS Yes
    NOTE: Also available in plenum.
    This cable works with:
  • RG-59/2x18 Coax Connectors, BNC (FCBNC04) and F-Type (FCF04)
  • Coax Crimp Tool (CCC01)
  • Questions? Contact our FREE Tech Support.
    NOTE: Also available in plenum.

    This cable works with:
  • RG-59/2x18 Coax Connectors, BNC (FCBNC04) and F-Type (FCF04)
  • Coax Crimp Tool (CCC01)
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
