Networking > Console Servers

click photo to enlarge

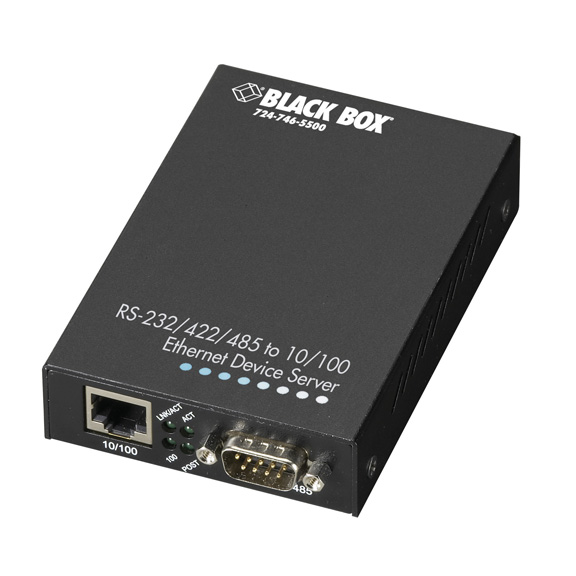

LS4103A-US-R2

Photo may show similar product

Other views

Pure Networking Device Sharer, RJ-45

Access an RS-232/422/485 device over copper or fiber Ethernet.

LS4103A-US-R2

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Run 100BASE-FX or 10/100BASE-T Ethernet to serial industrial equipment.
  • Connect industrial serial equipment, such as programmable logic controllers, and more, to your Fast Ethernet network.
  • Ideal for harsh manufacturing environments.
  • Offer easy plug-and-play installation.

  • Description

    Pure Networking Device Sharer, RJ-45


    Quick Facts

  • Run 100BASE-FX or 10/100BASE-T Ethernet to serial industrial equipment.
  • Connect industrial serial equipment, such as programmable logic controllers, and more, to your Fast Ethernet network.
  • Ideal for harsh manufacturing environments.
  • Offer easy plug-and-play installation.

  • Further Details

    Run 100BASE-FX Ethernet to serial industrial equipment, then make the connection using BLACK BOX® Pure Networking™ Fiber Device Servers.

    Use this server to connect programmable logic controllers and other RS-232/422/485 industrial equipment, such as milling machines, measurement instruments, even robots, to your copper network via fiber.

    The server is also ideal for connecting other devices such as card readers, lab equipment, medical equipment, and more.

    Plus the server makes it easy to integrate fiber cabling without modifying your existing copper network. You can keep costs down while upgrading! The server also eliminates the worry about EMI/RFI interference and data degradation in industrial areas. By using a terminator DIP switch, you can create the illusion of an infinite line for a true multidrop network.

    Choose the Pure Networking Copper Device Server (LS4103A-R2) to connect to serial devices over your 10- or 100-Mbps UTP Ethernet network.

    You can use Pure Networking Device Servers as standalone devices, wallmount them, or mount them on a DIN rail.


    Technical Specifications for Pure Networking Device Sharer, RJ-45:

    Control Signals RS-232: TX, RX, CTS, RTS, DTR, DSR, RI, DCD, GND;
    RS-422: TX, RX, GND; RS-485: Data, GND
    Distance (Maximum) Fiber: Multimode: 1.2 mi. (2 km); Single-Mode: 12.4 mi. (20 km);
    Serial: RS-232: 50 ft. (15.2 m); RS-422/485: 0.7 mi. (1.1 km)
    Management CLI, Telnet™, RS-232 console, menu-driven interfaces
    Operation 4-wire full duplex, 2-wire half-duplex
    Speed Fiber: 100 Mbps;
    Serial: 50-115.2 kbps async
    Standards IEEE 802.3u; EIA/TIA-232, EIA/TIA-574
    CE Approval Yes
    Connectors (1) DB9 M, (1) RJ-45
    Indicators (3) LEDs: Power, Link, Receive
    Power 120 VAC, 60 Hz external adapter, 9-32 VDC @ 800 mA
    Size 0.9"H x 2.9"W x 4.3"D (2.3 x 7.4 x 10.9 cm)
    Weight 0.3 lb. (0.1 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
