Networking > Switches

click photo to enlarge

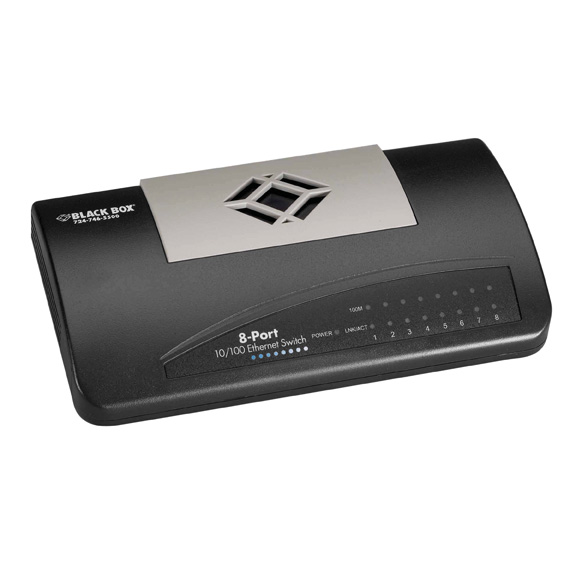

LB8508A

Photo may show similar product

Other views

Pure Networking 10/100 Ethernet Switch, 8-Port

The affordable way to build a small network.

LB8508A


One year Warranty

Product Highlights

  • This smart switch is easy to set up and easy to afford.
  • Determines which Ethernet addresses are in use on each segment and builds a table as packets are passed through it.
  • Autosensing ports adapt automatically to 10- or 100-Mbps Ethernet and send data to the correct port.

  • Description

    Pure Networking 10/100 Ethernet Switch, 8-Port


    Quick Facts

  • This smart switch is easy to set up and easy to afford.
  • Determines which Ethernet addresses are in use on each segment and builds a table as packets are passed through it.
  • Autosensing ports adapt automatically to 10- or 100-Mbps Ethernet and send data to the correct port.

  • Further Details

  • Autonegotiating half-/full-duplex.
  • Full wire speed with nonblocking, store-and-forward switching architecture.
  • Auto MDI/MDI-X function on all ports eliminates the need for cross-pinned cables.
  • Also available with 5 or 16 10-/100-Mbps ports.


  • The Pure Networking family of Ethernet components from Black Box makes it easy for you to build a small 10-/100-Mbps Ethernet network. Pure Networking components are affordable, go together easily, and work with any standard Ethernet components you may already own.

    Our 10/100 Ethernet Switches are the traffic managers of your network. They examine each data packet and send it to the correct port.

    The switches are ’smart“ and easy to set up—simply plug in your devices. They“re self-learning and determine the Ethernet addresses in use on each segment, building a table as packets are passed through the switch.

    This product works with:
  • GigaBase 350 CAT5e Patch Cables with Snagless Boots, 350-MHz, Straight-Pinning (EVNSL85)
  • Pure Networking Broadband Routers (LR9601A, LR9603A)
  • Pure Networking PCI Bus Network Adapter (LE1600C)
  • Questions? Contact our FREE Tech Support.


    Technical Specifications for Pure Networking 10/100 Ethernet Switch, 8-Port:

    Buffer — 256 KB
    Filtering and Forwarding Rate — 148,800 pps
    MAC Address Table — 8K
    Standards — IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX
    Switching Architecture — Store and forward
    CE Approval — Yes
    Connectors — (8) RJ-45
    Indicators — LEDs: Per unit: (1) Power;
    Per port: (1) 10/100 Mbps; (1) LNK/ACT
    Power — 120 VAC, 60 Hz, external power supply
    Size — 1.4"H x 7.4"W x 3.9"D (3.6 x 18.8 x 9.9 cm)
    Weight — 0.6 lb. (0.3 kg)
    This product works with:
  • GigaBase 350 CAT5e Patch Cables with Snagless Boots, 350-MHz, Straight-Pinning (EVNSL85)
  • Pure Networking Broadband Routers (LR9601A, LR9603A)
  • Pure Networking PCI Bus Network Adapter (LE1600C)
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Pure Networking 10/100 Ethernet Switch, 8-Port:


    Connect your Pure Networking 10/100 Ethernet Switch, 8-Port with:

    Accessory: LGB2001A

    Pure Networking 10-/100-/1000-Mbps Switch

    Pure Networking 10-/100-/1000-Mbps Switch

    Accessory: EVNSL85-0010

    GigaBase 350 CAT5e Patch Cable, Snagless Boots, Beige, 10-ft. (3.0-m)

    GigaBase 350 CAT5e Patch Cable, Snagless Boots, Beige, 10-ft. (3.0-m)

    Accessory: LE1600C-R2

    Pure Networking PCI Bus Network Adapter, 10/100

    Pure Networking PCI Bus Network Adapters, 10/100
