Networking > Switches

click photo to enlarge

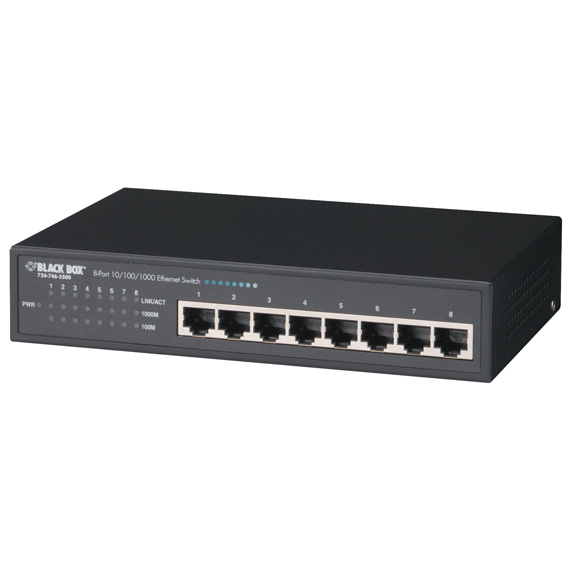

LGB2001A

Photo may show similar product

Other views

Pure Networking 10-/100-/1000-Mbps Switch

Affordable Gigabit Ethernet for your small network.

LGB2001A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Features eight autosensing 10-/100-/1000-Mbps ports.
  • Easy “plug-and-play” operation.

  • Description

    Pure Networking 10-/100-/1000-Mbps Switch


    Quick Facts

  • Features eight autosensing 10-/100-/1000-Mbps ports.
  • Easy “plug-and-play” operation.

  • Further Details

  • Autonegotiating for duplex.
  • Supports 10-/100-Mbps autodetection for half-/full-duplex operation, and 1000-Mbps autodetection for full-duplex operation.
  • Auto MDI/MDI-X on each port.
  • LEDs indicate speeds, links, and power.
  • Slim, compact design.

  • The Pure Networking 8-Port 10-/100-/1000-Mbps Switch is an easy and affordable way to bring Gigabit speeds to your small office or home network.

    It’s so easy to use—literally plug-and-play! Just connect the cable, and the switch automatically senses and adjusts to the speed of each connected device.

    Each port is independent so you can mix and match Ethernet types, keeping your favorite older Ethernet devices in your network while adding new high-speed devices. The 256 KB RAM buffer prevents data from bottlenecking when different Ethernet speeds operate within the same network.

    The switch also autonegotates duplex, supporting half- or full-duplex for 10-Mbps and 100-Mbps speeds and full-duplex only at Gigabit speeds. And with Auto MDI/MDI-X on all ports, you don’t have to worry about having a crossover cable on hand.


    Technical Specifications for Pure Networking 10-/100-/1000-Mbps Switch:

    Distance (Maximum) — 100 m (328 ft.)
    MAC Addresses — 8K
    Operating Environment — Temperature: 32 to 104° F (0 to 40° C);
    Humidity: 10 to 70% noncondensing
    Standards — IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
    Switching Method — Store and forward
    CE Approval — Yes
    Connectors — (8) RJ-45
    Indicators — LEDs: Per unit: (1) PWR;
    Per port: (1) LNK/ACT, (1) 100M, (1) 1000M
    Power — 115 VAC, 60 Hz
    Size — 1.1"H x 6.7"W x 3.9"D (2.8 x 17 x 9.9 cm)
    This product works with:
    • Pure Networking Broadband Routers (LR9601A, LR9603A)
    • Pure Networking 10/100/1000 Gigabit PCI Bus Network Adapter (LG9230CTX-32)
    • GigaBase® 350 CAT5e Patch Cables with Snagless Boots, 350-MHz, 24 AWG, RJ-45, 4-Pair, 568-B, Straight-Pinning (EVNSL85)
    Questions? Contact our FREE Tech Support.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Pure Networking 10-/100-/1000-Mbps Switch:


    Connect your Pure Networking 10-/100-/1000-Mbps Switch with:
