Infrastructure Hardware > Patch Panels

click photo to enlarge

JHN2011A

Photo may show similar product

Other views

Pure Home Networking Data/Telephone Modules

Make telephone and Ethernet wiring connections.

JHN2011A


Lifetime Warranty

Product Highlights

  • Terminate wiring for your phone and computer networks.
  • All Data/Telephone Modules are half-sized.


    • Description

    Pure Home Networking Data/Telephone Modules, 1 x 12-Port CAT3 Expansion Basic Telephone, Bridged, T568A


    Quick Facts

  • Terminate wiring for your phone and computer networks.
  • All Data/Telephone Modules are half-sized.

    • Further Details

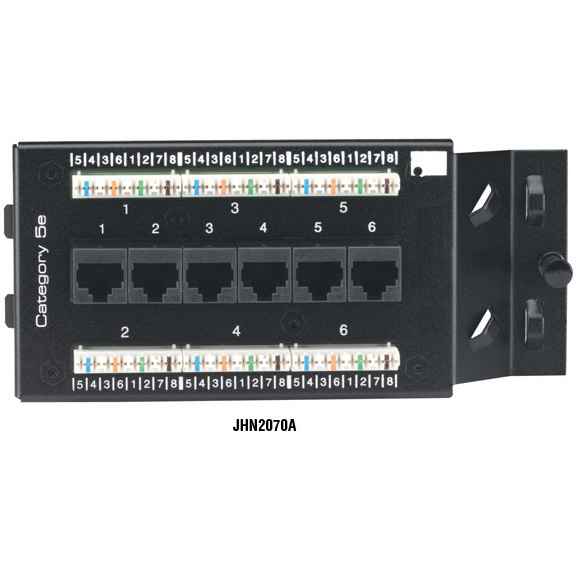

    6-Port CAT5e Data/Telephone Module (JHN2070A): Supports up to six T568A RJ-45 data and/or voice connections and has front 110-type punchdown termination. Interfaces with our 6-Port CAT3 Telephone Module (JHN2012A) and our 12-Port CAT3 Expansion Telephone Module (JHN2011A).

    6-Port CAT5e Data Module (JHN2071A): Supports up to six RJ-45 T568B ports for data and has six front, 110-type punchdown terminations.

    1 x 6-Port CAT3 Telephone Module, Bridged (JHN2012A): Supports up to six T568A RJ-45 telephone ports from four incoming phone lines via a 110 termination. Features two expansion ports. Includes an RJ-31X security system interface, surge protection pins, and isolation jumpers. Works with the 6-Port CAT5e Data/Voice Telephone Module (JHN2070A) for easy expansion.

    1 x 12-Port Basic Telephone Module, Bridged (JHN2010A): Distributes four incoming phone lines to up to 12 telephone outlets. Features front 110-type termination blocks and T568A wiring. The right choice for basic phone, fax, and modem service. Supports a telephone surge protector.

    1 x 12-Port CAT3 Expansion Telephone Module, Bridged (JHN2011A): Supports up to 12 T568A RJ-45 telephone connections from four incoming phone lines via a 110-type termination. Includes two expansion ports. Supports a telephone surge protector. Can be combined with two 6-Port CAT5e Data/Telephone Modules (JHN2070A) to create 12 telephone outlets with built-in troubleshooting.



    Technical Specifications for Pure Home Networking Data/Telephone Modules:

    Module Sizes — One Unit, Half-Size: 3"H x 6.33"W


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Pure Home Networking Data/Telephone Modules:


    Connect your Pure Home Networking Data/Telephone Modules with:
